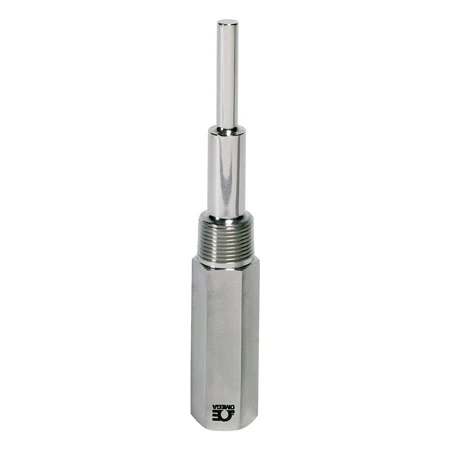

0.260″ Bore Dia Threaded Lagging Extension Thermowells

Original price was: $120.17.Current price is: $84.12.

Rugged and Industrial
Connection Sizes – 1/2, 3/4 and 1 Inch Standard
Insertion Lengths from 2½ to 19½ Inches
Materials – Brass, Carbon Steel and Stainless Steel

External Thread

Material

Shank Diameter

Insertion Length

Pressure Rating

Features

Stem length/Probe Length

Clear

SKU: 1/2-260L-U71/2-304SS-CC Categories: Accessories, Protection, Thermowells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Application:
Standard Length, 1/4″ stem, bimetal thermometers #20gage thermocouple elements unarmored liquid-in-glasstest thermometers. Other temperature-sensingelements having .252 in. maximum diameter.

Connection Size:
1/2″, 3/4″ and 1″ NPT are standard. Other thread sizes areavailable upon request.

Materials:
Brass (ASTM B-16), Carbon Steel (C-1018), StainlessSteel A.I.S.I. 304 & A.I.S.I. 316, Monel. Wells are alsoavailable in special materials prices on request.

Series 260L—Lagging Extension Type
0.260" Bore Dia Threaded Lagging Extension Thermowells -Heater Home Shop series 260l dimension

External Thread	1/2 in NPT, 1 in NPT, 3/4 in NPT
Material	304 Stainless Steel, 316 Stainless Steel, Brass, Carbon Steel
Shank Diameter	5/8 in, 1/2 in, 7/8 in, 3/4 in
Insertion Length	7 1/2 in, 10 1/2 in, 13 1/2 in, 19 1/2 in, 2 1/2 in, 4 1/2 in
Pressure Rating	7000 PSI @70 F, 5000 PSI @ 70 F, 5200 PSI @ 70 F
Features	Cap and Chain, 3 in lag extension, 2 in lag extension and Cap and Chain, 2 in lag extension
Stem length/Probe Length	12 in, 15 in, 18 in, 24 in, 6 in, 9 in
Pipe Size	Not Applicable
Flange Size	Not Applicable
Shank Style	Straight
Internal Thread	1/2 in NPSM
Bore Diameter	0.260 in
Well Type	Threaded
