1″ & 1.25″ OD Through-Hole, Compression Load Cells

Original price was: $347.00.Current price is: $97.99.

5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
Miniature Low Profile Models
All Stainless Steel Construction

Weight Capacity

Through hole (ID)/ Threaded hole dimension

Clear

SKU: LC8100-200-5 Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

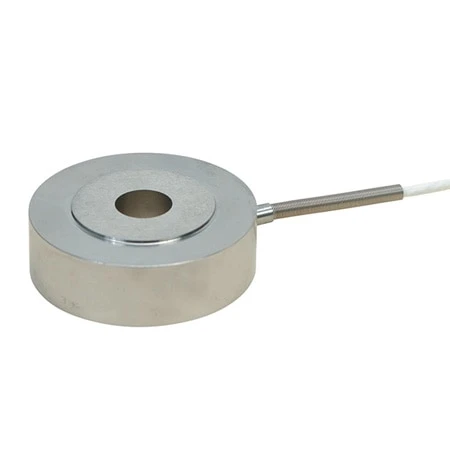

The LC8100 and LC8125 Series Donut Load Cell is an economical solution to applications requiring a through-hole design. With its extremely low profile and compact design, this load cell is ideal for applications such as clamping forces, bolt loading forces and other compressive loads. This series, with its all stainless steel construction have demonstrated proven reliability in tough industrial applications.

SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Accuracy: ±1.0% linearity, hysteresis and repeatability combined
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.075 mm (0.003″) nominal
Input Resistance: 360 ? minimum
Output Resistance: 350 ±5 ?
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5′) 4-conductor shielded cable

Weight Capacity	5 lbf, 10 lbf, 100 lbf, 200 lbf, 25 lbf, 50 lbf, 250 lbf, 500 lbf
OD	1", 1.25"
Through hole (ID)/ Threaded hole dimension	0.200", 0.100'', 0.125'', 0.188", 0.250", 0.312", 0.375"
Measurement Units	lbf
Force direction	Compression
Linearity	±1.0%
Electrical Output (nominal)	2 mV/V
Connection Type	Cable
Cable Length	5 ft
