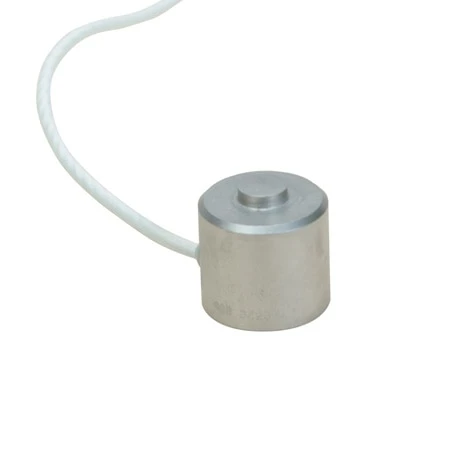

1″ Diameter, Miniature Button Compression Load Cell

Original price was: $359.00.Current price is: $95.99.

Rugged Heavy Duty Design
Built in Load Button for Easy Installation
Miniature 1″ (25 mm) Diameter and 1″ (25 mm) High Case
5-Point Calibration with 59 kOhm Shunt Cal Data

Weight Capacity

Measurement Units

Clear

SKU: LC304-10K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA’s LC304 Series Load Cell offers the highest output of all miniature load cells. Its small 1″ (25 mm) diameter makes it easy to mount in a pocket or on a flat surface. The rugged stainless steel case and high quality construction assure reliability in severe industrial environments.

The LC304 is also available in metric configurations, with ranges from 0-100 N to 0-50 kN. Please see the LCM304 for complete details, or contact our Pressure department for more information..

Weight Capacity	10,000 lbf, 100 lbf, 1,000 lbf, 3,000 lbf, 500 lbf, 5,000 lbf, 7,500 lbf, 10,000 N, 20,000 N, 2,000 N, 500 N, 50,000 N, 5,000 N
Measurement Units	lbf, N
Force direction	Compression
Linearity	±0.5%
Electrical Output (nominal)	2 mV/V
OD	1"
Height	1"
Connection Type	Cable
Cable Length	5 ft
