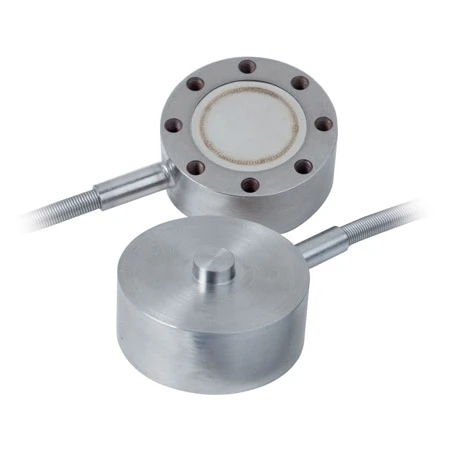

2″ Diameter, Miniature Button Compression Load Cell

Original price was: $334.00.Current price is: $98.99.

5-Point NIST Traceable Calibration
with 59 kOhm Shunt Cal Data
LC305 Cable Style, LC315 Connector Style
0.25% Interchangeability for Scale Applications

Weight Capacity

Measurement Units

Height

Connection Type

Cable Length

Clear

SKU: LC305-5K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA’s LC305 Series Load Cell offers the highest output of all miniature load cells. Its small 1″ (25 mm) diameter makes it easy to mount in a pocket or on a flat surface. The rugged stainless steel case and high quality construction assure reliability in severe industrial environments.

The LC305 is also available in metric configurations, with ranges from 0-100 N to 0-50 kN. Please see the LCM305 for complete details, or contact our Pressure department for more information..

Weight Capacity	5,000 lbf, 100 lbf, 10,000 lbf, 1,000 lbf, 200 lbf, 20,000 lbf, 25 lbf, 2,500 lbf, 2,000 lbf, 300 lbf, 50 lbf, 500 lbf, 8,000 lbf, 20,000 N, 50,000 N
Measurement Units	lbf, N
Height	1", 0.81"
Connection Type	Cable, MIL-26482-I 10-6P
Cable Length	10 ft, Not applicable
Force direction	Compression
Linearity	±0.15%
Electrical Output (nominal)	2 mV/V
OD	2"
Feature	Mounting Holes
