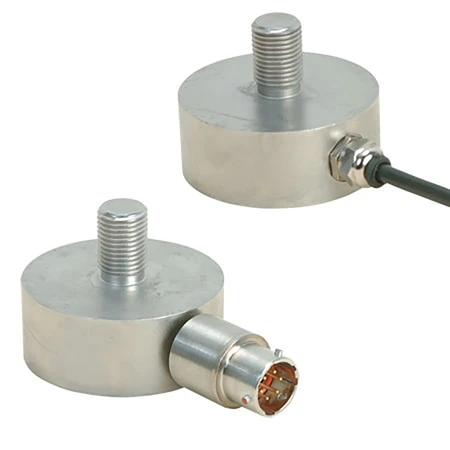

2″ Diameter, Surface Mount, Miniature Inline Load Cells

Original price was: $381.00.Current price is: $98.99.

5-Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data
1.0% Interchangeability for Scale Applications
Miniature Package for Test Stands and Difficult Locations
Designed to Be Mounted on a Flat Surface

Weight Capacity

Connection Type

Cable Length

Clear

SKU: LC204-200 Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA’s LC204 Series Load Cell is designed to be surface mounted with the load applied through the mounting stud. The high linearity (0.15%) and all stainless steel construction of the LC204 make it ideal for industrial and commercial weighing and force measuring applications.

The LC204 is also available in metric configurations, with ranges from 0-100 to 0-50,000 N and metric threads. Please see the LCM204 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V ±1.0%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Protection Class: IP65
Thermal Effects:
Zero: 0.0045% FSO/°F
Span: 0.009% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ? minimum
Output Resistance: 350 ±10 ?
Construction: Stainless steel
Electrical: 3 m (10′) 4-conductor shielded cable
LC214/LCM214 Mating Connector: PT06F10-6S, sold separately

Weight Capacity	200 lbf, 100 lbf, 10,000 lbf, 1,000 lbf, 25 lbf, 2,500 lbf, 2,000 lbf, 300 lbf, 50 lbf, 500 lbf, 5,000 lbf, 8,000 lbf
Connection Type	Cable, MIL-26482-I 10-6P
Cable Length	10 ft, Not applicable
Measurement Units	lbf
Force direction	Tension/Compression
Linearity	±0.15%
Electrical Output (nominal)	2 mV/V
OD	2"
Height	1.56"
