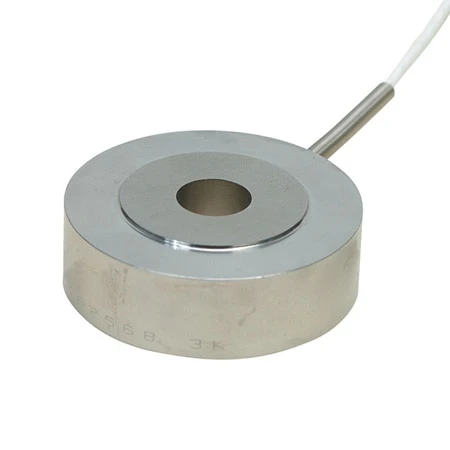

2″ OD Through-Hole, Compression Load Cells
Original price was: $365.00.$97.99Current price is: $97.99.
- 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data - Low Profile
- All Stainless Steel Construction
- Rugged Industrial Design
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Linearity: ± 0.5% FSO
Repeatability: ± 0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.036% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.076 mm (0.003″) nominal
Input Resistance: 360 ? minimum
Output Resistance: 350 ±5 ?
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5′) 4-conductor shielded cable
| Weight Capacity | 2,000 lbf, 1,000 lbf, 250 lbf, 500 lbf, 10 lbf, 100 lbf, 25 lbf, 5 lbf, 50 lbf, 3,000 lbf, 5,000 lbf, 10,000 lbf, 7,500 lbf |
|---|---|
| Through hole (ID)/ Threaded hole dimension | 0.500", 1.00", 0.125'', 0.188", 0.250", 0.375", 0.625", 0.750", 0.875" |
| Height | 0.63", 0.37" |
| Measurement Units | lbf |
| Force direction | Compression |
| Linearity | ±0.5% |
| Electrical Output (nominal) | 2 mV/V |
| OD | 2" |
| Connection Type | Cable |
| Cable Length | 5 ft |
