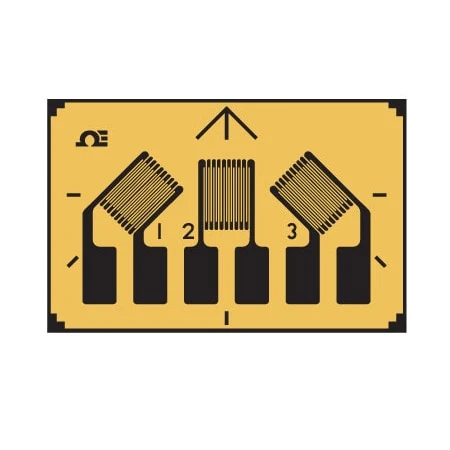

3 Element, 0°/45°/90° Planar, Compact Rosette Strain Gauges

Original price was: $209.40.Current price is: $98.99.

Conveniently Priced per Pack of 5
Very Flexible, Mechanically Strong
Small Bending Radius
Broad Temperature Range

Grid Length Range

Grid Length

Grid Width

Connection Type

Resistance

STC number

Clear

SKU: SGD-1/120-RY23 Categories: Force & Strain Measurement, Rosette Strain Gauges, Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA™ strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

Grid Length Range	0 to 3 mm, 3 to 6 mm
Grid Length	1.6 mm, 2 mm, 3 mm, 6 mm
Grid Width	1.7 mm, 2 mm, 2.1 mm, 3.2 mm
Connection Type	Ribbon Leads, Solder pads
Resistance	120 Ω, 350 Ω
STC number	AL, ST
Grid Style	0°/45°/90° Planar Rosettes
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	200
Maximum Strain	30,000 μm
