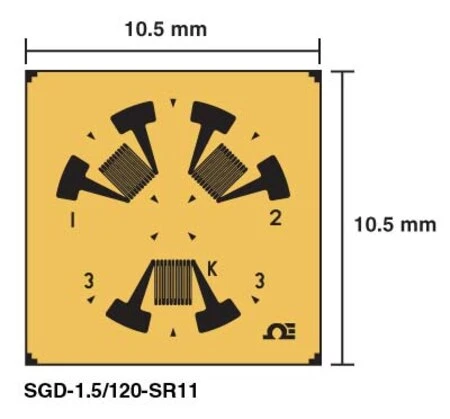

3 Element Stress Relief Strain Gauges
Original price was: $246.71.$99.99Current price is: $99.99.
- Very Flexible, Mechanically Strong
- Small Bending Radius
- Broad Temperature Range
- Affix with Cold or Hot Curing Adhesives
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Description
OMEGA™ strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.
| Connection Type | Ribbon Leads, Solder pads |
|---|---|
| STC number | ST, AL |
| Grid Style | Stress Relief |
| Grid Length Range | 0 to 3 mm |
| Grid Length | 1.2 mm |
| Grid Width | 1.33 mm |
| Temperature Range Units | °C |
| Temperature Range Min | -75 |
| Temperature Range Max | 200 |
| Resistance | 120 Ω |
| Maximum Strain | 30,000 μm |
