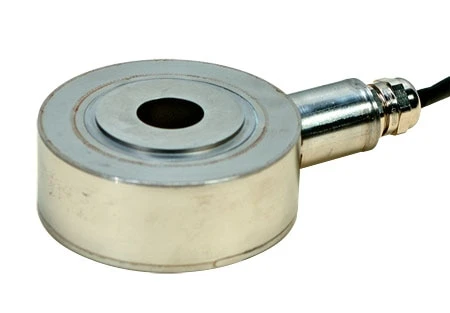

3″ OD Through-Hole, Compression Load Cells
Original price was: $376.00.$95.99Current price is: $95.99.
- 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data - Low Profile
- All Stainless Steel Construction
- Rugged Industrial Design
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
The LC8300 Series Donut Load Cell is an economical solution to applications requiring a through-hole design. With its extremely low profile and compact design, this load cell is ideal for applications such as clamping forces, bolt loading forces and other compressive loads. This series, with its all stainless steel construction and environmental protection, have a proven reliability in tough industrial applications.
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Linearity: ±0.5% FSO
Repeatability: ±0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C
   Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.076 mm (0.003″) nominal
Input Resistance: 360 ? minimum
Output Resistance: 350 ±5 ?
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5′) 4-conductor shielded cable
| Weight Capacity | 5,000 lbf, 100,000 lbf, 10,000 lbf, 15,000 lbf, 1,000 lbf, 20,000 lbf, 2,000 lbf, 30,000 lbf, 3,000 lbf, 40,000 lbf, 50,000 lbf, 75,000 lbf, 4,000 lbf, 7,500 lbf |
|---|---|
| Through hole (ID)/ Threaded hole dimension | 0.500", 1.00", 1.05", 1.13", 1.25", 1.38", 1.50", 2.50", 0.375", 0.625", 0.750", 0.875", 0.938" |
| Measurement Units | lbf |
| Force direction | Compression |
| Linearity | ±0.5% |
| Electrical Output (nominal) | 2 mV/V |
| OD | 3" |
| Height | 1" |
| Connection Type | Cable |
| Cable Length | 5 ft |
