Adjustable Output IR Sensor High Temperatures And Display

Original price was: $323.00.Current price is: $98.99.

High measurement temperatures up to 1800 °C (3272 °F)
Many fields of view options, 2:1,15:1, 20:1, 40:1 and 80:1
Features a built-in LCD display with keypad
User selectable options for analog outputs and USB 2.0 digital

Process Temprature Range

Field of View

Accuracy @ Ambient

Operating Temprature range

Laser Output

Emissivity

Output

Supply Voltage

Spectral Response

Response Time

Clear

SKU: OS-AO250-201-300 Categories: Fixed Infrared Temperature Sensors, Non-Contact Temperature Measurement Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

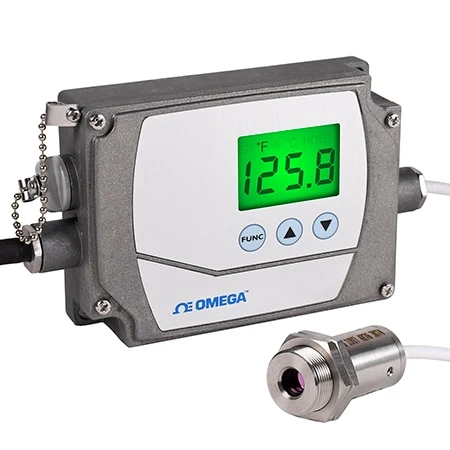

The OSAO-Series high temperature IR sensors are designed to offer peak performance over a wide range of temperatures. The integrated LCD display offers a convenient way to adjust the settings and measure the temperature. The display is capable of setting various parameters like emissivity, analog sub range, set point, hysteresis, analog output, temperature unit, response time, peak picker, sensor address, and more!

The integrated laser targeting light (AO250 Models) and optional mounting accessory significantly speed up installation. Accessories like the Water Cooling Jacket (with air purge) and Air Purge Unit-Sensor Head allow the sensor to be installed in varying environments. If the ambient temperature is over 70 °C (158 °F) or lots of dust can build up on the sensor head then these accessories become more of a necessity. If ambient temperatures are over 120 °C (248 °F) then the AO50H Model with an ambient temperature rating up to 180 °C (356 °F) is a perfect solution.

The OSAO-Series sensors have adjustable emissivity and can measure many different surfaces such as Iron and Steel, Lead, Marble, Brick, Asphalt, and many more!

Process Temprature Range	250°C (482°F) to 1000°C (1832°F), 300°C (572°F) to 1300°C (2372°F), 350°C (662°F) to 1800°C (3272°F), 0° (32°F) to 800°C (1472°F)
Field of View	20:1, 40:1, 80:1, 15:1, 2:1
Accuracy @ Ambient	±0.3% of the measured value +1° C, ± 1% of the measured value or 3°C whichever value is greater
Operating Temprature range	0°C (32°F) to 70°C (158°F), Display 0°C (32°F) to 70°C (158°F) Sensor Head 0°C (32°F) to 120°C (248°F), Display 0°C (32°F) to 70°C (158°F) Sensor Head 0°C (32°F) to 180°C (356°F)
Laser Output	Yes, No
Emissivity	0.1-1, 0.1-1.2
Output	0-20mA, 4-20mA, 0-10V (User Selectable), and USB 2, 0-20mA, 4-20mA, 0-10V, Thermocouple Type "K" or "J" (User selectable) and USB 2
Supply Voltage	24 Vdc, 12 to 28 Vdc
Spectral Response	1.6 microns, 8 to 14 microns
Response Time	2 ms-10 sec (adjustable), 20 ms-10 sec (adjustable), 60 ms-10 sec (adjustable)
Built in Display	Yes
Cable Length	3 m (10 ft)
Communication Protocol	USB
Intrisically Safe	No
Features	Adjustable Outputs
