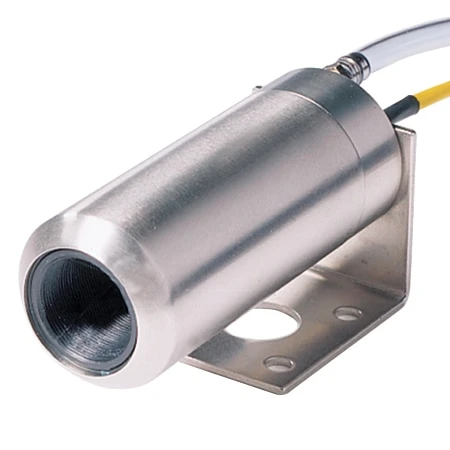

Adjustable Temperature IR Sensor With Thermocouple Outputs

Original price was: $349.00.Current price is: $98.99.

Self-Powered via thermocouple outputs
Built-in Air Purge to help keep optics clean in environments with dust
J or K Thermocouple Output Signal, R or S Type for 100:1 Models
Temperature measurements up to 2760°C (5000°F)

Process Temprature Range

Field of View

Emissivity

Output

Spectral Response

Response Time

Features

Clear

SKU: OS37-10-K Categories: Fixed Infrared Temperature Sensors, Non-Contact Temperature Measurement Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The OS37 / OS37-CF/OS37-60CF models are infrared thermocouples designed for high emissivity targets (non-metals and coated metals) and the OS38-CF/ OS38-60CF/ OS38 models are designed for low emissivity targets (clean metals). All models feature an internal adjustment screw which adjusts the 2% accuracy band anywhere within the overall temperature range. All models offer a choice of 10:1, 20:1 or 100:1 fields of view and a built-in air purge.

The many different fields of view allow the user to select an IR sensor specifically for their application and coupled with measurement temperatures up to 2760°C (5000°F) many applications are covered. Applications such as steel, painted surfaces, adhesives, asphalt and marble just cover a portion of the possiblities.

Process Temprature Range	-45°C (-49°F) to 1370°C (2498°F), 540°C (1004°F) to 2760°C (5000°F), -18°C (0°F) to 1370°C (2498°F), 820°C (1500°F) to 2760°C (5000°F), 260°C (500°F) to 1370°C (2498°F), 540°C (1000°F) to 1930°C (3500°F), 820°C (1500°F) to 2500°C (4500°F)
Field of View	101, Close-Focus, 1001, 201
Emissivity	0.1-0.49, 0.5-1
Output	Thermocouple Type K, Thermocouple Type R, Thermocouple Type S, Thermocouple Type J
Spectral Response	2 to 20 microns, 0.1 to 5 microns
Response Time	80 ms, 200 ms
Features	Air Purge cooling, GST Connector
Accuracy @ Ambient	±2% range
Operating Temprature range	-18°C (0°F) to 85°C (185°F)
Laser Output	No
Built in Display	No
Cable Length	8 ft
Intrisically Safe	No
