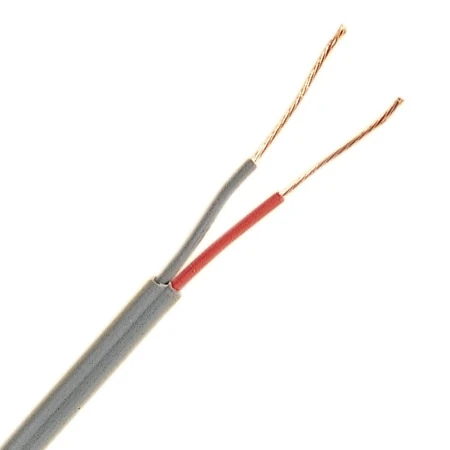

B Type Thermocouple Duplex Extension Wire
Original price was: $355.00.$98.99Current price is: $98.99.
- Extension Grade
- Copper/Copper
- Duplex
- ANSI Type BX
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
ANSI Color Code: Positive Wire, Gray Negative Wire, Red Overall, Gray*
| Model No. | Insulation | AWG No. | Type Wire | Insulation | Max. Temp | Nominal Size (mm) | Wt.†kg/300m | ||
| Conductor | Overall | °F | °C | ||||||
| EXGG-B-20 | Glass | 20 | Solid | Glass Braid | Glass Braid | 212 | 100 | 1.52 x 2.41 | 4 |
| EXTT-B-26S | PFA | 26 | 7 x 34 | PFA | PFA | 212 | 100 | 1.07 x 1.73 | 2.2 |
| EXPP-B-24 EXPP-B-24S | Polyvinyl | 24 24 | Solid 7 x 32 | Polyvinyl Polyvinyl | Polyvinyl Polyvinyl | 212 212 | 100 100 | 1.91 x 3.05 4.62 x 3.41 | 2.2 5.3 |
| EXFF-B-26S | FEP | 26 | 7 x 34 | FEP | FEP | 212 | 100 | 1.07 x 1.722.2 | Â |
*Gray on EXGG wire.
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
| Wire Gauge | 24 AWG, 26 AWG, 20 AWG |
|---|---|
| Temperature Max | 100 |
| Overbraiding Type | none |
| Number of Pairs | None |
| Cable Type | Extension Wire |
| Additional Feature | None |
| Thermocouple Calibration Type | B |
| Temperature Range | 0° to 100°C (32° to 212°F) |
| Temperature Min | 0 |
| Conductor Insulation | Polyvinyl (PVC), FEP, Glass Braid, PFA |
| Temperature Unit | °C |
| Category | Thermocouple |
| Color Code Standard | IEC, ANSI (Standard) |
| Overall Insulation | Polyvinyl (PVC), FEP, Glass Braid, PFA |
| Cable Length | 1000 ft, 100 ft, 200 ft, 25 ft, 50 ft, 500 ft, 15 m, 30 m, 7.5 m, 150 m |
| Conductor type | Solid, Stranded |
| Special Limit of error | No |
