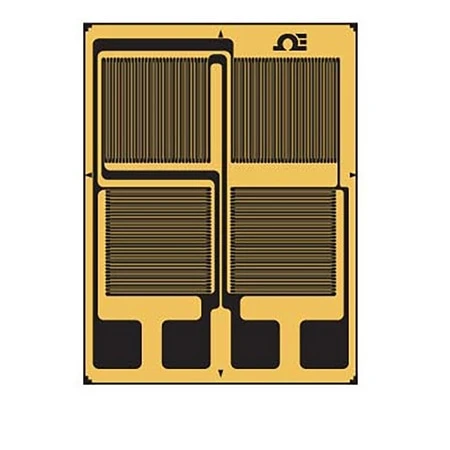

Bending & Axial, Full Bridge Strain Gauges With Transducer Quality

Original price was: $186.98.Current price is: $96.99.

Conveniently Priced per Pack of 5
Rugged, High Reliability
Flexible, Small Bending Radius
Broad Temperature Range

Grid Length Range

Grid Length

Grid Width

Connection Type

Resistance

STC number

Clear

SKU: SGT-3G/350-FB11 Categories: Force & Strain Measurement, Linear Strain Gauges, Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA™ transducer quality strain gages are available in a variety of patterns to cover most transducer design requirements. Their rugged construction, reliability and flexibility make them suitable for highly accurate static and dynamic transducers. The measuring grid is formed by specially formulated etching constantan foil, which is then completely sealed for long term reliability in a carrier medium composed of polyimide film.

Grid Length Range	0 to 3 mm, 3 to 6 mm
Grid Length	2.5 mm, 1.8 mm, 4 mm
Grid Width	2.9 mm, 2.4 mm, 2 mm, 4.3 mm
Connection Type	Ribbon Leads, Solder pads
Resistance	350 Ω, 1,000 Ω
STC number	ST, AL
Grid Style	Full bridge
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	95
Maximum Strain	30,000 μm
Features	Transducer quality
