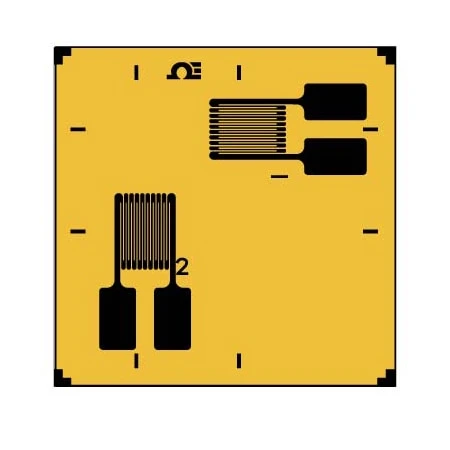

Biaxial, 0/90° Corner T Rosette Strain Gauges

Original price was: $103.12.Current price is: $72.18.

Conveniently Priced per Pack of 5
General Purpose Strain Gages
Very Flexible, Mechanically Strong
Small Bending Radius

Grid Length Range

Grid Length

Grid Width

Connection Type

Resistance

STC number

Clear

SKU: SGD-3/350-RYB81 Categories: Force & Strain Measurement, Strain Gauges, T-Rosette Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurements.

Grid Length Range	0 to 3 mm, 3 to 6 mm
Grid Length	3 mm, 1.6 mm, 6 mm
Grid Width	2.1 mm, 1.7 mm, 3.2 mm, 3.1 mm
Connection Type	Solder pads, Ribbon Leads
Resistance	350 Ω, 120 Ω
STC number	ST, AL
Grid Style	Corner T Rosettes
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	200
Maximum Strain	30,000 μm
