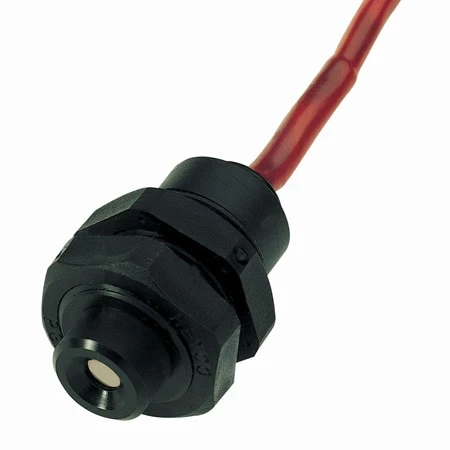

Built-in Air Purge IR Sensor With Thermocouple Output
Original price was: $359.00.$96.99Current price is: $96.99.
- Please refer to the OS36AP-Series for replacement options
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
The OS36AP-Series extends the range of applications for infrared sensors with thermocouple outputs to situations which require the sensor to be mounted remotely from the target. In addition to the ruggedness and ease-of-use of the original OS36-Series, the OS36AP-Series is hermetically sealed and is equipped with an internal air cool/purge system. As do all infrared sensors with thermocouple outputs, this series is self-powered and can work in ambient environments up to 400°C (750°F) with optional accessory OS36-APC.
The OS36-AP-Series has a calibrated sensing range of -18 to 250°C (0 to 480°F) and operating temperature range of -18°C (0°F) to 100°C (212°F). These sensors can achieve higher ambient temperature ratings with the OS36-APC up to 538°C (1000°F) with water cooling or 400°C (750°F) with built in air purge. The housing is hermetically sealed and NEMA 4, IP65 and IP67 rated.
The OS36AP-Series is designed for applications such as rough steel plates,quartz, water, unpolished stainless steel, asbestos, paints, wood, brick, and more.
| Process Temprature Range | 0°C (32°F) to 50°C (120°F), 20°C (70°F) to 90°C (190°F), 60°C (140°F) to 105°C (220°F), 80°C (180°F) to 120°C (250°F), 115°C (240°F) to 165°C (330°F), 140°C (280°F) to 190°C (370°F), 160°C (320°F) to 260°C (500°F), 16°C (60°F) to 39°C (102°F), -18°C (0°F) to 30°C (85°F) |
|---|---|
| Field of View | 2:1, 10:1, 3:1, 5:1 |
| Output | Thermocouple Type K, Thermocouple Type J, Thermocouple Type T, Thermocouple Type E |
| Features | OST Connector, Built-in Air Purge |
| Accuracy @ Ambient | ±2% range |
| Operating Temprature range | -18°C (0°F) to 100°C (212°F) |
| Laser Output | No |
| Built in Display | No |
| Emissivity | 0.9 |
| Cable Length | 1 m (3 ft) |
| Spectral Response | 6.5 to 14 microns |
| Response Time | 100 ms |
| Intrisically Safe | No |
