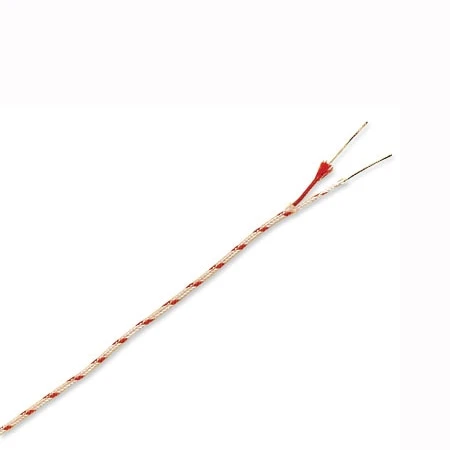

C Type Thermocouple Duplex Extension Wire
Original price was: $381.00.$97.99Current price is: $97.99.
- Extension Grade
- W5%Re/W26%Re
- Duplex
- Type CX
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Compensating Extension Wires for W5%Re/W26%Re Thermocouples. Alloy types 405/426.
Color Code:
For EXXG wire, Positive Wire, White/Red Trace; Negative Wire, Red; Overall, White/Red Trace
For EXX* wire, Positive Wire, White; Negative Wire, White/Red Trace; Overall, White/Red Trace
| Model No. | Insulation | AWG No. | Type Wire | Insulation | Max. Temp | Nominal Size (mm) | Wt.†kg/300m | ||
| Conductor | Overall | °F | °C | ||||||
| EXXC-C-24 EXXT-C-24 EXXL-C-24 | Ceramic* | 24 24 24 | Solid Solid Solid | Nextel Ceramic Nextel Ceramic Nextel Ceramic | Nextel Ceramic Nextel Ceramic Nextel Ceramic | 392 392 392 | 200 200 200 | 2.92 x 4.44 2.23 x 3.35 1.98 x 2.95 | 5.4 4.9 4.5 |
| EXGG-C-24 | Glass | 24 | Solid | Glass Braid | Glass Braid | 392 | 200 | 1.27 x 2.03 | 3.1 |
The XC is the standard braid, XT is a tight braid and XL is a light duty braid; the three types of braid affect only the amount of Nextel used in manufacturing.
*Has color tracers on jacket and conductors
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
| Conductor Insulation | Glass Braid, PFA, Nextel Ceramic |
|---|---|
| Thermocouple Calibration Type | C |
| Special Limit of error | No |
| Number of Pairs | None |
| Cable Type | Extension Wire |
| Additional Feature | None |
| Conductor type | Solid |
| Wire Gauge | 24 AWG |
| Temperature Range | 0 to 200°C (32 to 400°F) |
| Cable Length | 1000 ft, 100 ft, 150 m, 200 ft, 25 ft, 300 m, 30 m, 50 ft, 500 ft, 7.5 m |
| Temperature Max | 200 |
| Temperature Min | 0 |
| Temperature Unit | °C |
| Category | Thermocouple |
| Overbraiding Type | Stainless Steel Overbraid, none, Tinned Copper Overbraid, Nextel 312 Standard Braid, Nextel 312 Tight Braid |
| Overall Insulation | Glass Braid, PFA, Nextel Ceramic |
| Color Code Standard | ANSI (Standard) |
