Compact Modular Signal Conditioner Data Acquisition Systems

Original price was: $223.24.Current price is: $99.99.

Rugged, Compact Economical Signal Conditioning & Data Acquisition
Replacement Model for 5B Device
1500 Vrms Transformation Isolation & 240 Vrms Field-Side Protection
Modular Design for Mix and Match Capability

Input Type

Input Ranges

Output Type

Programability

Clear

SKU: OM5-WBS-2-C Categories: Signal Conditioners, Specialty Conditioners Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

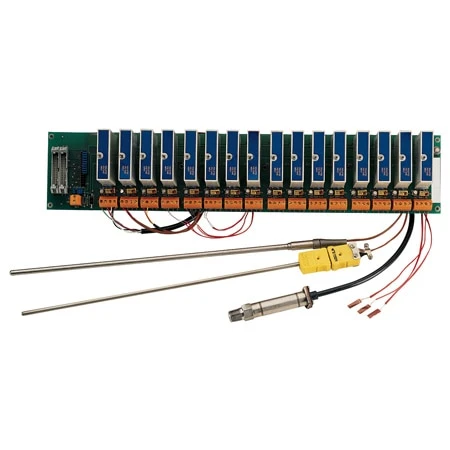

As one of the best replacement/Upgrade model for famous 5B devices, the OM5 series modular signal conditioners provide a low cost, high performance method of inter-connecting real-world analog signals with data acquisition, monitoring or control systems. They are designed to interface directly to analog inputs such as thermocouples, RTDs, strain gages and voltage or process current signals. Individual OM5 modules convert these inputs to standardized analog outputs compatible with high-level analog I/O systems. The OM5 is designed to provide easy and convenient solutions to signal conditioning problems of both designers and end users in measurement and control applications. Typical uses include mini- and microcomputer-based measurement systems, standard data acquisition systems, recorders, and dedicated control systems. The OM5 is ideally suited to applications where monitoring and control of temperature, pressure, flow and other analog signals is required.

Specifications
Input Ranges: See ordering table
Common Mode Voltage, Input to Output:1500 Vrms max
Bandwidth:
OM5-II, OM5-IMV, OM5-ITC, OM5-IV, OM5-IP/IC/IN, OM5-LTC, OM5-PT: 4 Hz
OM5-WBS, OM5-WMV, OM5-WV: 10 KHz
Input (field) Protection: 240 Vrms max
Output Range: See ordering table
Output Current limit (input modules): ±14 mA max
Operating Temperature Range: -40 to 85°C
Module Dimensions: 2.28″ x 2.26″ x 0.60″(58 x 57 x15 mm)

Input Type	mV, Current, Millivolt, RTD, Voltage, Linearized Thermocouple, Strain Gage, Wideband Voltage
Input Ranges	±20 mV, 0 to 20 mA, ±100 mV, ±10 mV, ±50 mV, 0 to 100°C, ±5 V, 0 to 500°C, 0 to 200°C, ±30 mV @ 10 V Exc
Output Type	±5 V, 0 To 5 Vdc, ±5 Vdc, 0 to 5 Vdc
Programability	None, Standard
Input Class	Bridge, strain, mV
Output Class	Process
Display Type	None
Isolation	1500 V
