Copper Extension Wire, For RTD And Thermistor

Original price was: $306.00.Current price is: $96.99.

RTD wire for Extending RTD and Thermistor Signal Leads
High Temperature Glass, PFA and Polyvinyl Wire Insulation

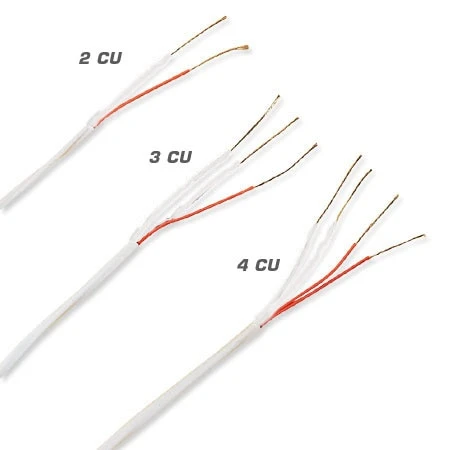

Wire Available with 2, 3 and 4 Conductors
AWG 20 solid, 24 or 26 stranded

Temperature Max

Temperature Range

Wire Gauge

Conductor Insulation

Conductor type

Overall Insulation

Number of Pairs

Overbraiding Type

Color Code Standard

Clear

SKU: EXTT-3CU-26S-250M Categories: Temperature Wire and Cable, Thermocouple Wires Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Insulation Model
Number Number of
Conductors Type
Wire Insulation Max. Temp. Nominal
Size (mm) Wt.*
kg/300m Conductor Overall °F °C GlassEXGG-2CU-202SolidGlass BraidGlass Braid9004821.52 x 2.414EXGG-2CU-26S27 x 34Glass BraidGlass Braid9004821.52 x 1.322.2EXGG-3CU-26S37 x 34Glass BraidGlass Braid9004821.52 x 1.633.1EXGG-4CU-26S47 x 34Glass BraidGlass Braid9004821.52 x 1.664.1Neoflon®
PFAEXTT-2CU-26S27 x 34PFAPFA5002601.07 x 1.732.2EXTT-3CU-26S37 x 34PFAPFA5002601.834.1EXTT-4CU-26S47 x 34PFAPFA5002602.084.1PolyvinylEXPP-2CU-24S27 x 32PolyvinylPolyvinyl2211052.08 x 3.404.5EXPP-3CU-24S37 x 32PolyvinylPolyvinyl2211054.226.3

* Weight of spool and wire rounded up to the next highest kg. (does not include packing material).

Learn more about thermocouple wires and cables in this article.

Temperature Max	260, 482, 105
Temperature Range	0 to 260°C (32 to 500°F), 0 to 482°C (32 to 900°F), 0° to 105°C (32 to 221°F)
Wire Gauge	26 AWG, 20 AWG, 24 AWG
Conductor Insulation	PFA, Glass Braid, Polyvinyl (PVC)
Conductor type	Stranded, Solid
Overall Insulation	PFA, Glass Braid, Polyvinyl (PVC)
Number of Pairs	None, 2
Overbraiding Type	none, Tinned Copper Overbraid
Color Code Standard	ANSI (Standard), 100 ft
Temperature Unit	°C
Temperature Min	0
Additional Feature	None
Cable Type	Extension Wire
Special Limit of error	No
