Copper Extension Wire, For Sanitary RTD And Thermistor

Original price was: $111.18.Current price is: $77.83.

Available with PFA, Fiberglass or PVC Insualtion and Outer Jacket
#24 or #26 AWG Stranded Nickel Plated Copper Conductors Available in Most Styles
Red/Black or Red/White Color Codes Available in Most Styles
Available with Optional Stanless Steel Overbraid

Temperature range

Wire Gauge

Conductor type

Number of Pairs

Conductor Insulation

Overall Insulation

Overbraiding Type

Cable Length

Color Code Standard

Clear

SKU: EXGG-2CU-20-30M Categories: Extension Wires and Cables, Temperature Wire and Cable Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

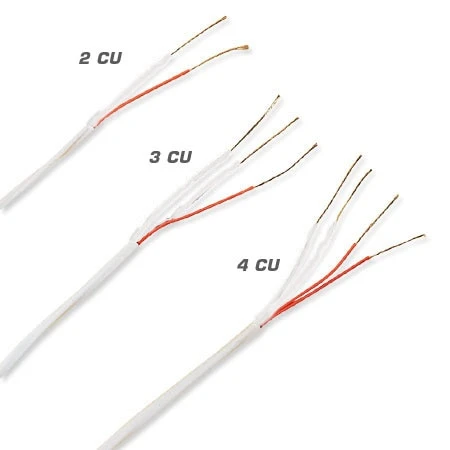

This cable is great for manufacturing sensors or for use as extension wire. Available in 2, 3 and 4 wire constructions, two color codes (red/black or red/white), three insulation and jacketing materials (PFA, Fiberglass and PVC) and three conductor sizes (#20 AWG Solid, #24 or #26 AWG Stranded) this cable will work with a wide variety of applications. Standard spool lengths include 25, 50, 100, 200, 500 and 1000 feet.

Temperature range	0 to 482°C (32 to 900°F), 0° to 105°C (32 to 221°F), 0 to 260°C (32 to 500°F)
Wire Gauge	20 AWG, 26 AWG, 24 AWG
Conductor type	Solid, Stranded
Number of Pairs	None, 2
Conductor Insulation	Glass Braid, Polyvinyl (PVC), PFA
Overall Insulation	Glass Braid, Polyvinyl (PVC), PFA
Overbraiding Type	None, Stainless Steel Overbraid, Tinned Copper Overbraid
Cable Length	30 m, 1000 ft, 100 ft, 200 ft, 500 ft, 25 ft, 150 m, 300 m, 50 ft, 7.5 m, 15 m, 100 m
Color Code Standard	ANSI (Standard), IEC
Category	Hook-up (RTD)
Cable Type	Extension Wire
Special Limit of error	No
Additional Feature	None
