Copper Overbraid Thermocouple Duplex Extension Wire

Original price was: $397.00.Current price is: $95.99.

Durable, Flexible and Long Lasting
Tinned Copper Overbraid Electrically Shields and Mechanically Protects the Wire
Polyvinyl Coating Protects from Moisture and Provides Chemical Resitance
See the Related Links Section on the Bottom of This Page for Other Overbraid Options

Temperature Min

Temperature Max

Color Code Standard

Cable Length

Conductor type

Wire Gauge

Thermocouple Calibration Type

Temperature Range

Clear

SKU: EXPP-K-16S-TCB-P-100 Categories: Temperature Wire and Cable, Thermocouple Wires Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

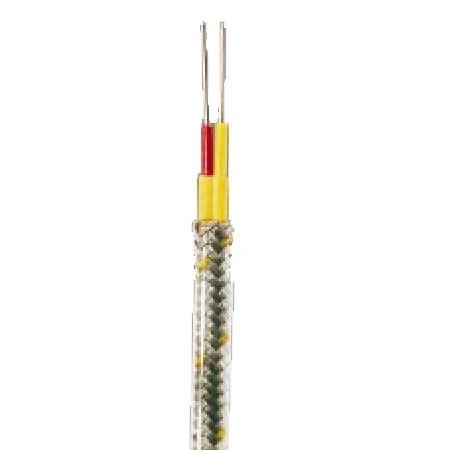

OMEGA™ extension cables are designed for use in connecting a thermocouple probe to a readout or indicator. Made from extension grade thermocouple wire, J, K and E wire types are rated from 0-105°C (32 to 22°F) for the insulation. The range type T extension wire is rated from -60° to 100°C (-76 to 212°F). Used for a wide variety of applications, these cables are constructed with color-coded extruded PVC or PFA applied to each wire leg. Another color-coded sheath of the same material is then extruded over the two primary legs. A metal overbraid is then applied over the insulated wire: tinned copper over PVC wire, stainless steel over PFA wire. This overbraid adds durability, flexibility and long-term abrasion protection to the wire, in addition to providing electrical shielding for use in noisy environments. Finally, a third layer of PVC or PFA is extruded over the entire assembly to protect the metal overbraid.

Polyvinyl Coated Wire with Tinned Copper Overbraid

Model Number	Calibration	Nominal Size (mm)	AWG No.
EXPP-J-14-TCB-P EXPP-J-16-TCB-P EXPP-J-16S-TCB-P EXPP-J-20-TCB-P EXPP-J-20S-TCB-P EXPP-J-24S-TCB-P	J Iron- Constantan	5.08 x 7.41 4.75 x 6.73 4.82 x 6.86 4.06 x 5.53 4.09 x 5.59 4.01 x 5.13	14 Solid 16 Solid 16 Stranded 20 Solid 20 Stranded 24 Stranded
EXPP-T-14-TCB-P EXPP-T-16-TCB-P EXPP-T-20-TCB-P EXPP-T-20S-TCB-P	T Copper Constantan	5.08 x 7.41 4.75 x 6.73 4.06 x 5.53 4.09 x 5.59	14 Solid 16 Solid 20 Solid 20 Stranded
EXPP-K-14-TCB-P EXPP-K-16-TCB-P EXPP-K-16S-TCB-P EXPP-K-20-TCB-P EXPP-K-20S-TCB-P EXPP-K-24S-TCB-P	K CHROMEGA™- ALOMEGA™	5.08 x 7.41 4.75 x 6.73 4.82 x 6.86 4.06 x 5.53 4.09 x 5.59 4.01 x 5.13	14 Solid 16 Solid 16 Stranded 20 Solid 20 Stranded 24 Stranded
EXPP-E-16-TCB-P EXPP-E-20-TCB-P EXPP-E-24S-TCB-P	E CHROMEGA Constantan	5.08 x 7.41 4.06 x 5.53 4.01 x 5.13	16 Solid 20 Solid 24 Stranded

Temperature Min	0, -24, -24°
Temperature Unit	°C
Overbraiding Type	Tinned Copper Overbraid
Number of Pairs	None
Overall Insulation	Polyvinyl (PVC)
Cable Type	Extension Wire
Additional Feature	None
Conductor Insulation	Polyvinyl (PVC)
Category	Thermocouple
Temperature Max	105, 100
Color Code Standard	ANSI (Standard), IEC
Cable Length	100 ft, 1000 ft, 200 ft, 25 ft, 50 ft, 500 ft, 30 m, 150 m, 300 m, 7.5 m
Conductor type	Stranded, Solid
Wire Gauge	16 AWG, 20 AWG, 24 AWG, 14 AWG
Thermocouple Calibration Type	K, E, J, T
Temperature Range	0 to 105°C (32 to 221°F), 0° to 105°C (32 to 221°F), -24 to 105°C (-11 to 221°F), -24° to 100°C (-11 to 212°F)
Special Limit of error	No
