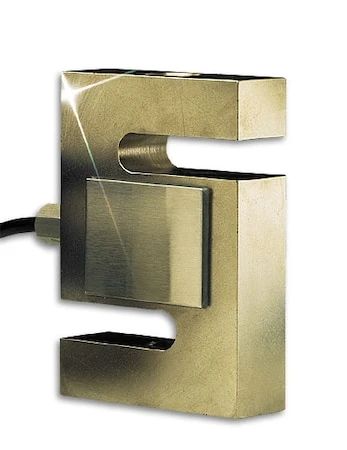

Corrosion Resistant S-Beam Load Cells
Original price was: $353.00.$99.99Current price is: $99.99.
- Environmentally Protected for Washdown Applications
- Corrosion Resistant
- Calibration Certificate Supplied
- 0.25% Interchangeable
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
SPECIFICATIONS
Rated Output: 3mV/V ±0.0075mV/V actual output supplied with each load cell)
Excitation: 10 Vdc (15 Vdc maximum)
Accuracy: 0.037% Full Scale
Linearity: 0.03% FS
Hysteresis: 0.02% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: 0 to 150°F
Compensated Temperature: 0 to 150°F
Thermal effects: Zero – 0.0015% FS/°F Span – 0.0008% RDG/°F
Maximum Load: Safe, 150%; Ultimate, 300%
Bridge Resistance: 350 Ohms nominal
Full Scale Deflection: 0.010 in to 0.020 in
Construction: Nickel Plated Carbon Steel
Cable: 20 ft 4-conductor shielded 22-gage wire
| Weight Capacity | 500 lbf, 100 lbf, 10,000 lbf, 150 lbf, 15,000 lbf, 1,000 lbf, 200 lbf, 20,000 lbf, 25 lbf, 250 lbf, 2,000 lbf, 3,000 lbf, 50 lbf, 5,000 lbf, 750 lbf |
|---|---|
| Height | 3", 2.5", 4.75", 5.5", 7", 4.25" |
| Width | 1", 0.65", 1.25", 1.5", 2.25", 0.75" |
| Length | 2", 3.5", 4", 5", 3" |
| Measurement Units | lbf |
| Force direction | Tension/Compression |
| Linearity | ±0.03% |
| Electrical Output (nominal) | 3 mV/V |
| Connection Type | Cable |
| Cable Length | 20 ft |
