Current Switch
Original price was: $26.00.$18.20Current price is: $18.20.
- Integral mounting flange for ease of installation
- Solid and split core models for installation versatility
- LED indicator for easy status determination
- Fixed and adjustable set points for greater flexibity
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Dwyer Instruments is now a DwyerOmega product brand.

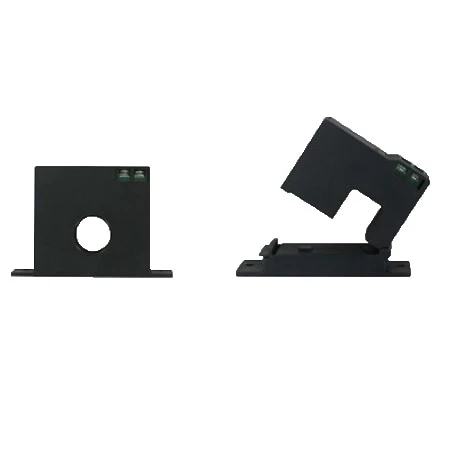

The Series CCS Current Switches are ideal for monitoring the operating status of fans, pumps and motors. These self-powered switches can be hung or tied directly to cables or wires. For use on existing installations, split core models can be installed without disconnecting cables. LED indicators provide a visual confirmation that the current is flowning through core. Both fixed and and adjustable set point versions are available. Set point adjustments are easily completed utilizing the built-in potentiometer.
CSS
Applications:
Proof of installation/current flow
Current draw monitoring
Model Chart
| Model | Core type | Contact Type | Output | Set Point |
|---|---|---|---|---|
| CCS-111100 | Solid | Non-dry | NO | Adjustable |
| CCS-121050 | Solid | Dry | NO | Fixed |
| CCS-131100 | Solid | Dry | NO | Adjustable |
| CCS-211150 | Split | Non-dry | NO | Adjustable |
| CCS-221100 | Split | Dry | NO | Set Point |
| CCS-231150 | Split | Dry | NO | Adjustable |
| Set Point | Adjustable, Fixed |
|---|---|
| Switch Rating | 1A @ 240 Vac, .3A @ 135 Vac/dc |
| Contact Type | Non-Dry, Dry |
| Minimum Set Point (A) | 1, 0.5, 1.5 |
| Output | NO |
| Isolation Voltage | 2000 |
| Enclousure Rating | UL 94V-0 |
| Compliance | CE, cULus |
