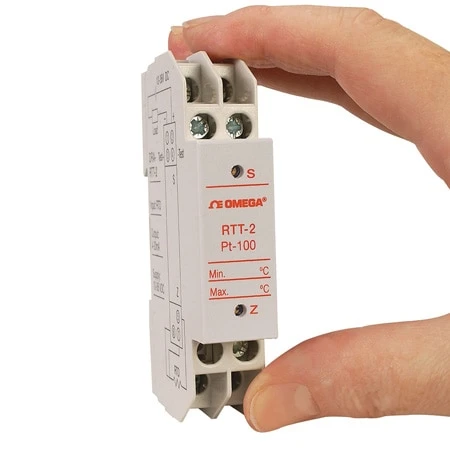

DIN Rail Loop Powered RTD Input Signal Conditioner

Original price was: $142.50.Current price is: $96.99.

±0.1% Accuracy
Linearized
Field Rangeable
Non-Isolated

SKU: DRA-RTT-2 Categories: DIN Rail Signal Conditioners, Signal Conditioners Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Model DRA-RTT-2 is a non-isolated signal conditioner that accepts 100 Ohm Platinum RTD input and converts this into a 4-20 mA process current output which is linearly proportional to temperature. These signal conditioners incorporate excellent lead wire compensation and linearization circuitry. Field ranging is accomplished by using an internal DIP switch array for coarse range setting and front panel accessible multi-turn zero and span potentiometers for fine tuning. Test terminals are provided to monitor the transmitter’s 4-20 mA output without disturbing the actual process loop.

Input Type	RTD
Input Class	Temperature
Input Ranges	30 to 810°C
Output Type	mA
Output Class	Process
Supply Voltage Type	Loop
Isolation	None
Programability	Trim Pot/Switch
