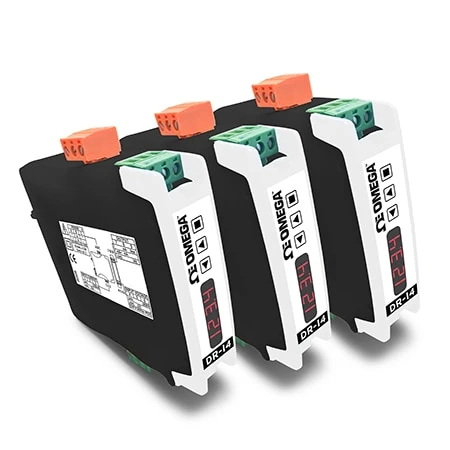

DR-I4 Series Signal Conditioner
Original price was: $200.00.$99.99Current price is: $99.99.
- Programmable Input for AC and DC voltages
- DIN mounting
- Universal Power Supply
- Configurable for Frequency Input
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
The DR-I4E is an isolated signal converter for electrical signals. Accepts a wide range of AC and DC voltages, with ranges from 50 mVac/dc up to 600 Vac/dc, and a wide range of AC and DC current signals, from 5 mAac/dc up to 5 Aac/dc. The instrument can be configured to measure frequency from any of the AC voltage and AC current signals accepted. Unipolar and bipolar signals accepted for DC voltage and DC current signals.
| Input Type | AC or DC Voltage, Current, or Frequency, Strain/Bridge, TC, RTD, Resistance, Pot, mA, V, NTC |
|---|---|
| Input Ranges | 50 mVAC up to 600 VAC, 0/5 mV up to 0/80mV, See Detail Specs |
| Output Type | mA, V |
| Display Type | Front Panel |
| Supply Voltage Type | 18 to 256V ac/dc isolated |
| Isolation | 3000 V |
| Programmability | Pushbutton |
| Additional Feature | Universal |
| FM Approved | No |
