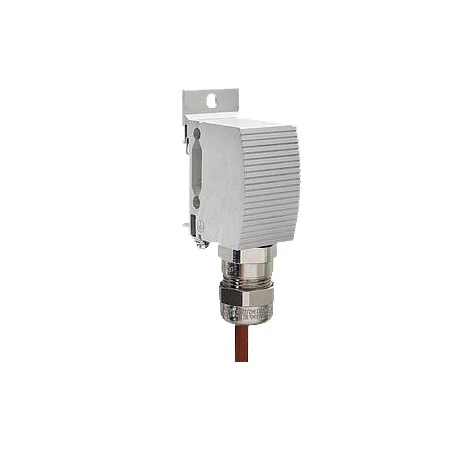

Explosion-Proof Thermostat

Description

The design of the thermostat ensureshigh accuracy, small switching difference(hysteresis) and a long service life. Becauseof the high switching capacity of thethermostat, heaters can usually be directlyconnected and switched, without the needfor additional relays.

SPECIFICATIONS
Explosion Proof To EN: Ex protection type II 2 GD
Conformity Certificate:
    Gases: Ex db IIC T6 Gb
    Dusts: Ex tb IIIC T85 °C Db
Switching Capacity:
    Max: AC 250 V 10 A
    Min: DC 1.5 V 5 mA
Service Life at Max Load: >100,000 cycles
Sensor Element: Thermostatic bi-metal
Contact Type (1-Pole): Normally Closed (NC), opens with rising temperature
Connection Cable: AWG 18 to 14 (1.0 to 2.5 mm²), length 3 ft (1 m)
Housing: Aluminum, silver anodized
Mounting: Clip for 35 mm DIN rail, EN 60715screw mounting M5, optional sideways mounting
Specifications are subject to changewithout notice. Suitability of this productfor its intended use and any associatedrisks must be determined by the endcustomer/buyer in its final application.
