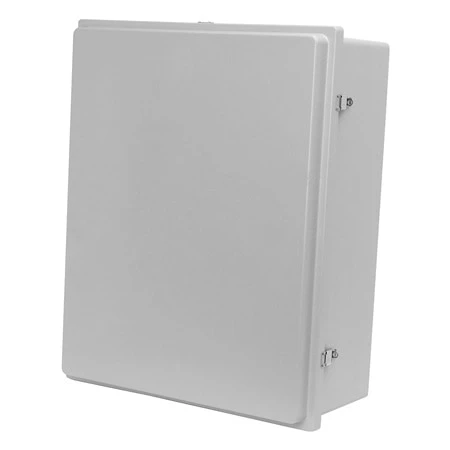

Fiberglass Electrical Enclosures, NEMA 4X/3R Outdoor

Original price was: $273.60.Current price is: $98.99.

Suited for Higher Temperatures or Corrosive Environments
Protect Controls and Components Indoors or Outdoors
UL 94 Flammability Rating
UV Stabilized

Enclosure Material

Closure Type

Enclosure Color

Works With

Features

Clear

SKU: OM-AM1206RTW Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OM-AM Series non-metallic fiberglass enclosures are designed to insulate and protect electrical controls and components in both indoor and outdoor applications and are especially well suited for higher temperatures and corrosive environments. These NEMA 4X (IP66) fiberglass JIC junction boxes feature flat or raised covers with a variety of latching options that allow you to provide the level of security or ease of access needed for each application. Hinged models are constructed with a stainless steel continuous hinge.

OM-AM Series fiberglass enclosures are available with the added feature of a raised cover. The cover adds an additional 1¾’ of depth to accomodate switches and other devices, and can be used with the optional deadfront panel for maximum configuration within a single enclosure.

Construction
– Fiberglass Reinforced Polyester Formulation
– Closed Cell Neoprene Seal Designed for NEAM 3R, NEMA 4X (IP66) Rating
– Latch Keeper Designs Eliminate Wall Penetrations
– 304 SS Hardware

SPECIFICATIONS
Service Temperature Rating: -35 to 130°C (-31 to 266°F)
Standards: UL Types 1, 2, 3, 4, 4x, 12 and 13; CSA Types 1, 2, 3, 3R, 4 4X, 12 and 13; NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13; IEC Type IP66
UL and CSA type 6P, IEC60529 type IP68: Models with flat covers without windows, 14 x 12 x 6 and smaller with 4 screw closure, are submersible up to 24 hours at a depth of 6 feet (1.8m).

Flat Cover with Screws– these models are available with ‘Lift Off Covers’ with screws in each corner or ‘Hinged’ on one side with screws on the opposite side.
Flat Cover with Latch– these models are available with a hinge on one side with either snap or twist latches on the opposite side.
Raised Cover with Screws– these models are available with ‘Lift Off Covers’ with screws in each corner or ‘Hinged’ on one side with screws on the opposite side.
Raised Cover with Latch– these models are available with a hinge on one side with either snap or twist latches on the opposite side.

Size	12 in H x 10 in W x 6 in D, 10 in H x 8 in W x 4 in D, 10 in H x 8 in W x 6 in D, 14 in H x 12 in W x 6 in D, 16 in H x 14 in W x 8 in D, 18 in H x 16 in W x 8 in D, 20 in H x 16 in W x 8 in D, 6 in H x 6 in W x 4 in D, 8 in H x 6 in W x 4 in D, Box Size 306 mm (12.05 in) x 261 mm (10.27 in) x 156 mm (6.13 in), Box Size 357 mm (14.05 in) x 312 mm (12.27 in) x 156 mm (6.13 in), Box Size 204 mm (8.05 in) x 159 mm (6.27 in) x 105 mm (4.13 in)
Enclosure Material	Fiberglass, Not Applicable
Closure Type	Raised cover Padlocking Latch Closure with Twist Latches, Flat Cover Screw Closure without Hinges, Flat Cover Screw Closure with Hinges, Flat cover Padlocking Latch Closure with Snap Latches, Raised Cover Screw Closure without Hinges, Raised Cover Screw Closure with Hinges, Raised Cover Padlocking Latch Closure, Raised cover Padlocking Latch Closure with Snap Latches, Raised Cover Padlocking Latch Closure without Twist Latches, Raised Cover Screw Closure with Hinges without Hinges, Flat cover Padlocking Latch Closure with Twist Latches, Flat Cover Screw Closure with Hinges without Hinges, Raised Cover Padlocking Latch Closure without Hinges, Not Applicable
Enclosure Color	White, Not Applicable
Works With	Electrical Controls and Components, Not Applicable
Features	Viewing window, Standard window, Not Applicable
