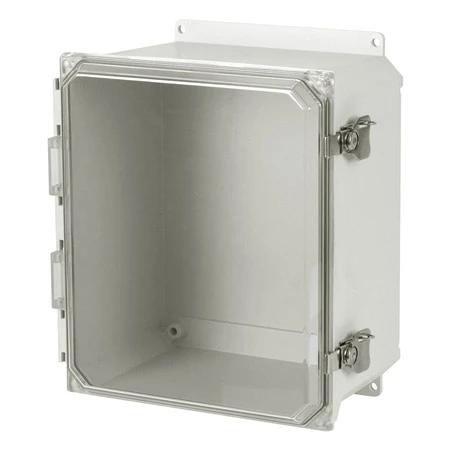

Fiberglass Enclosure Solid/Clear Cover, NEMA3R/4X Indoor/Outdoor

Original price was: $293.69.Current price is: $98.99.

Suited for Higher Temperatures or Corrosive Environments
Protect Controls and Components Indoors or Outdoors
UL 94 Flammability Rating
UV Stabilized for Outdoor Use

Closure Type

Cover

Features

Clear

SKU: OM-AMU1206LWF Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OM-AMU series non-metallic fiberglass enclosures are designed to insulate and protect electrical controls and components in both indoor and outdoor applications and are especially well suited for higher temperatures and corrosive environments. These NEMA 3R and NEMA 4X (IP66) fiberglass JIC size junction boxes feature raised covers with a variety of latching options that allow you to provide the level of security or ease of access needed for each application. The OM-AMU series electrical enclosures have molded-in hinges with removable stainless steel hinge pins.

Construction

Tongue and Grove, Closed Cell Neoprene Seal Designed for Nema Type 4X Rating
Molded-In Hinge and Latch Keeper Designs Eliminate Wall Penetrations
Factory Installed Durable Polycarbonate Mounting Flange
304 SS Hardware

Closures The OM-AMU Series fiberglass enclosures are available in multiple closure styles.

Lift-Off Cover with Four Screws
Molded-In Hinge on One Side with 2 Screws on the Opposite Side
Padlocking Snap Latch or Twist Latch with Molded-In Hinge

SPECIFICATIONS
Service Temperature Rating: -35 to 130°C (-31 to 266°F)
Standards: UL Types 1, 2, 3, 4, 4x, 12 and 13; CSA Types 1,2,3,3R, 4 4X, 12 and 13; NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13; IEC Type IP66
UL and CSA listed type 6P and IEC60529 type IP68: Models with solid and clear covers (without viewing window) , 14 x 12 x 6 and smaller with 4 screw closure, are submersible up to 24 hours at a depth of 6 feet (1.8m).

Size	12 in H x 10 in W x 6 in D, 10 in H x 8 in W x 4 in D, 14 in H x 12 in W x 6 in D, 16 in H x 14 in W x 8 in D, 18 in H x 16 in W x 10 in D, 20 in H x 16 in W x 10 in D, 6 in H x 6 in W x 4 in D, 8 in H x 6 in W x 4 in D
Closure Type	Padlocking Latch Closure with Snap Latch, Screw Closure without Hinges, Screw Closure with Hinges, Screw Closure with Hings, Padlocking Latch Closure with Twist Latch, Padlocking Latch Closure with Twist Latches, Screw Closure without Hings, Padlocking Latch Closure with Snap Latches
Cover	Not Applicable, Clear polycarbonate
Features	Viewing window, Standard window
Enclosure Material	Fiberglass
Works With	Electrical Controls and Components
