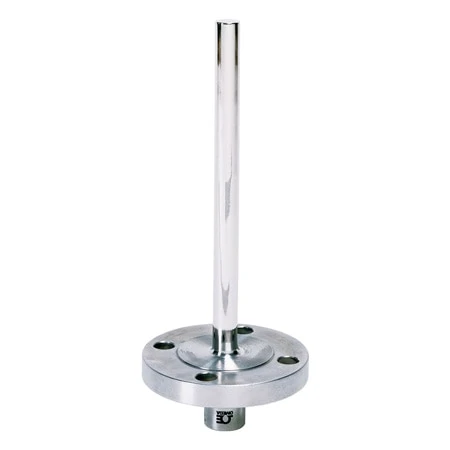

Flanged Thermowells For 0.260″ & 0.385″ Bore Diameters

Original price was: $235.55.Current price is: $96.99.

Rugged Industrial Thermowell with Flange
Available in Carbon Steel and Stainless Steel
Standard lengths from 2 to 22 inches
Bore Diameters of 0.260 and 0.385 Inches

Flange Size

Material

Shank Diameter

Insertion Length

Bore Diameter

Pressure Rating

Features

Stem length/Probe Length

Clear

SKU: 260F-U4-CS-1-300RF-CS Categories: Accessories, Protection, Thermowells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Application:
260F series fits standard length 1/4′ diameter elements.
385F series fits standard length 3/8′ diameter elements.
Flange Sizes:
1′ and 11/2′ flanges in all facings and pressure ratings are standard. Other sizes are available on application.
Materials:
Flanges and wells made of Carbon Steel (C-1018), A.I.S.I. 304, A.I.S.I. 316, and Monel are available for quick delivery. Other materials are available.

Protective Coatings for Thermowells:
• Resist Corrosion
• For Chemical Baths
• Color-Coded Sensors for Process Control
• Available in PFA, Epoxy and other materials.
Consult Sales Department for complete information
Welding:
Primary weld is “J” groove type; secondary weld is 45° bevel groove. Welding is performed by Navy certified welders using inert gas shielded arc.
Cap and Chain Options:
Consult sales.

Thermowell Dimensions
Model Number	Element Length A	Insertion Length U	Shank Diameter Q	Bore Diameter B
260F-U 2() U 4() U 7() U10() U13() U16() U22(*)	4 6 9 12 15 18 24	2 4 7 10 13 16 22	3/4 3/4 3/4 3/4 3/4 3/4 3/4	.260 .260 .260 .260 .260 .260 .260
385F-U 2() U 4() U 7() U10() U13() U16() U22(*)	4 6 9 12 15 18 24	2 4 7 10 13 16 22	7/8 7/8 7/8 7/8 7/8 7/8 7/8	.385 .385 .385 .385 .385 .385 .385

Flanges
Rating lb/in²	Size inch	Model Number (Flange Suffix)
150	1 1-1/2 2	1-150RF (or FF)() 11/2-150RF (or FF)() 2-150RF (or FF)(*)
300	1 1-1/2 2	1-300RF (or FF)() 11/2-300RF (or FF)() 2-300RF (or FF)(*)

*Insert code for material -304SS for 304 stainless steel,-316SS for 316 stainless steel, -CS for carbon steel
The thermowell and flange must
be made of the same material.

Flange Size	1 in, 2 in, 1 1/2 in
Material	Carbon Steel, 304 Stainless Steel, 316 Stainless Steel
Shank Diameter	3/4 in, 7/8 in
Insertion Length	4 in, 10 in, 13 in, 16 in, 22 in, 2 in, 48 in, 7 in
Bore Diameter	0.260 in, 0.385 in
Pressure Rating	300 PSI @ 70 F, 150 PSI @70 F
Features	Raised face Flange, Flat face Flange
Stem length/Probe Length	6 in, 12 in, 15 in, 18 in, 24 in, 4 in, 50 in, 9 in
External Thread	Not Applicable
Pipe Size	Not Applicable
Shank Style	Straight
Internal Thread	1/2 in NPSM
Well Type	Flanged
