Sale!

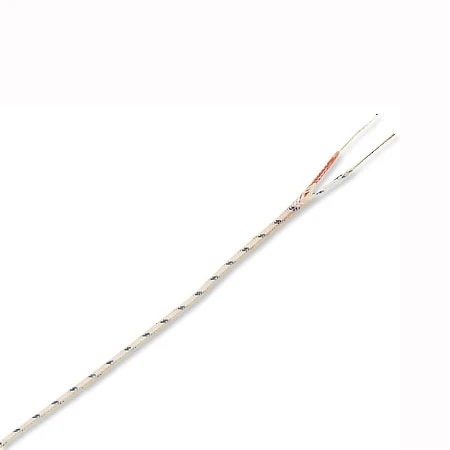

G Type Thermocouple Duplex Extension Wire
Original price was: $338.00.$95.99Current price is: $95.99.
- Extension Grade
- W/W26%Re
- Duplex
- Type GX
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Compensating Extension Wires for W/W26%Re Thermocouples. Alloy types 200/226.
Color Code: Positive Wire, White/Blue Trace Negative Wire, Red Overall, White/Blue Trace
Color Code: Positive Wire, White/Blue Trace Negative Wire, Red Overall, White/Blue Trace
| Model No. | Insulation | AWG No. | Type Wire | Insulation | Max. Temp | Nominal Size (mm) | Wt.†kg/300m | ||
| Conductor | Overall | °F | °C | ||||||
| EXGG-G-24 | Glass | 24 | Solid | Glass Braid | Glass Braid | 500 | 260 | 1.27 x 2.03 | 5 |
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
| Cable Length | 1000 ft, 100 ft, 200 ft |
|---|---|
| Conductor type | Solid |
| Special Limit of error | No |
| Overbraiding Type | Tinned Copper Overbraid |
| Number of Pairs | None |
| Overall Insulation | Glass Braid |
| Cable Type | Extension Wire |
| Additional Feature | None |
| Conductor Insulation | Glass Braid |
| Category | Thermocouple |
| Wire Gauge | 24 AWG |
| Thermocouple Calibration Type | C |
| Temperature Range | 0° to 427°C (32° to 800°F) |
| Temperature Max | 427 |
| Temperature Min | 0 |
| Temperature Unit | °C |
| Color Code Standard | ANSI (Standard) |
