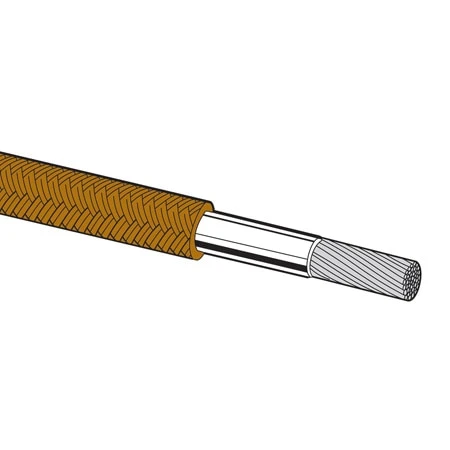

Heater Wire, Low Outgassing Fiberglass / Silicone Insulation

Original price was: $44.71.Current price is: $31.30.

200°C (392°F) Temperature Rating
UL CSA Certified*
Silicone Rubber Insulated with Treated Glass Overbraid
Single Stranded Nickel-Plated or Tinned Copper Conductor

Wire Gauge

Stranded Wire or Solid

Cable Diameter

Length

Wire Color

Clear

SKU: HTRG-1CU-618SW-50 Categories: Accessories, Electrical Components, Hookup Wires Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Braided silicone rubber insulated high-temperature lead wires are well suited for use as the exposed leads in appliances and lighting fixtures. HTRG Series wire is also used for range top burners and back panels, steam irons, toasters, broiler ovens, gas dryers, kilns, recessed lighting fixtures and similar applications up to 200°C (392°F).

Wire Gauge	18 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG
Stranded Wire or Solid	16 x 30, 105 x 30, 65 x 30, 41 x 30, 26 x 30
Cable Diameter	3.2 mm (0.13 in), 5.6 mm (0.22 in), 4.2 mm (0.17 in), 3.8 mm (0.15 in), 3.4 mm (0.13 in)
Length	50 ft, 100 ft, 1000 ft, 25 ft, 250 ft, 500 ft
Wire Color	White, Black
Volts	600 V
Maximum Operating Temperature	200°C (392°F)
Sheath Material	Treated glass overbraid
Conductor Insulation	Silicone Rubber
