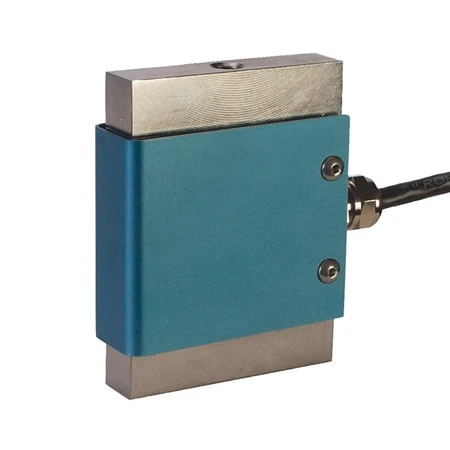

Heavy Duty, 500% Overload Protected S-Beam Load Cells

Original price was: $343.00.Current price is: $99.99.

Protected to 500% Full Scale Overload
High Linearity 0.03%
Very Low Thermal Drift
5-Point NIST Traceable Calibration Included

Weight Capacity

Height

Width

Clear

SKU: LCCE-50 Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Description

The LCCP1 Series load cell is a heavy duty through-hole load cell specially designed for oil well pump-off units. Features include a 1.63″ diameter through-hole to accommodate the pump rod, special strain relief and break-away protection on the electrical cable and customized mounting brackets. The all stainless steel construction and rugged design give the LCCP1 high accuracy and high reliability even in the harsh oil well environment.

Weight Capacity	50 lbf, 100 lbf, 150 lbf, 200 lbf, 25 lbf, 250 lbf, 500 lbf, 750 lbf
Height	2.5", 3"
Width	0.65", 0.95"
Measurement Units	lbf
Force direction	Tension/Compression
Linearity	±0.03%
Electrical Output (nominal)	3 mV/V
Length	1.9"
Connection Type	Cable
Cable Length	20 ft
