SPECIFICATIONS
Rated Output: 3 mV/V ±0.0075 mV/V (actual output supplied with each load cell)
Excitation: 10 Vdc (15 Vdc maximum)
Accuracy: ±0.037% Full Scale
Linearity: ±0.03% FS
Hysteresis: ±0.02% FS
Repeatability: ±0.01% FS
Zero Balance: ±1% FS
Creep In 20 min: ±0.03% FS
Operating Temperature: 0 to 150°F (-18 to 66°C)
Compensated Temperature: 0 to 150°F (-18 to 66°C)
Thermal effects: Zero – 0.0015% FS/°F Span – 0.0008% RDG/°F
Maximum Load: 200% FS
Side Load Rejection: 500:1
Bridge Resistance: 350 Ohms nominal
Full Scale Deflection: 0.015 in to 0.025 in
Construction: Nickel Plated Steel
Cable: 20 ft 4-conductor shielded 22-gage wire

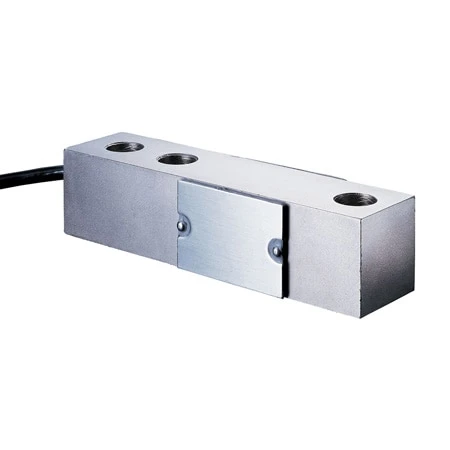

Heavy Duty, Shear Beam With Corrosion Resistance
$321.00 Original price was: $321.00.$95.99Current price is: $95.99.
- IP67 Environmental Rating
- Corrosion Resistant
- Calibration Certificate Supplied
- 0.25% Interchangeable
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

| Weight Capacity | 2,500 lbf, 10,000 lbf, 15,000 lbf, 1,000 lbf, 20,000 lbf, 2,000 lbf, 4,000 lbf, 500 lbf, 5,000 lbf |
|---|---|
| Height | 1.25", 1.5", 2" |
| Width | 1.25", 1.5", 2", 1" |
| Length | 5.12", 6.75", 8.88" |
| Measurement Units | lbf |
| Force direction | Compression |
| Linearity | ±0.03% |
| Electrical Output (nominal) | 3 mV/V |
| Connection Type | Cable |
| Cable Length | 20 ft |
