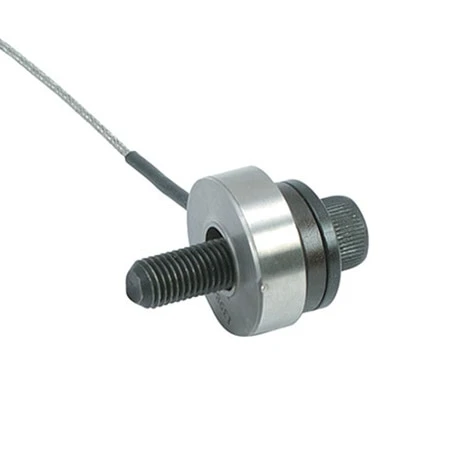

High Accuracy, Load Washers To Measure Bolt Compression

Original price was: $352.00.Current price is: $97.99.

Ranges to 200,000 lb
Compact Design
Spherical Washers Included
Load Buttons Included

Weight Capacity

Linearity

Electrical Output (nominal)

Through hole (ID)/ Threaded hole dimension

Height

Clear

SKU: LCWD-100K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The LCWD Series are for measuring bolt compressional forces in industrial, scientific and development applications. Spherical washers are included to assure proper alignment of the LCWD.

The LCWD is also available in metric configurations, with ranges from 0-100 to 0-200,000 N. Please see the LCMWD for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output: 1 mv/V
Accuracy (Linearity and Repeatability Combined):
    ?10K lb/50 kN: ±0.5% BFSL
    >10K lb/50 kN: ±0.75% BFSL
Zero Balance: ±4.0% FSO
Operating Temp Range: -40 to 127°C (-40 to 260°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
    Zero: ±0.018% FSO/°C
    Span: ±0.018% FSO/°C
Safe Overload: 120% of capacity
Ultimate Overload: 200% of capacity
Bridge Resistance:
    <50k lb/200 kN: 350 ? min
    ?50k lb/200 kN: 700 ?
Full Scale Deflection: 0.025 mm (0.001″) typical
Construction: Stainless steel
Electrical: 1.5 m (5′) insulated shielded cable

Weight Capacity	100,000 lbf, 10,000 lbf, 1,000 lbf, 200 lbf, 200,000 lbf, 20,000 lbf, 2,000 lbf, 500 lbf, 50,000 lbf, 5,000 lbf
Linearity	±0.75%, ±0.5%
Electrical Output (nominal)	2 mV/V, 1 mV/V
OD	2.25", 1", 3", 1.2", 1.75"
Through hole (ID)/ Threaded hole dimension	1.01", 0.400", 1.51", 0.500", 0.760"
Height	0.70", 0.35", 1.25", 0.4", 0.5"
Measurement Units	lbf
Force direction	Compression
Connection Type	Cable
Cable Length	5 ft
