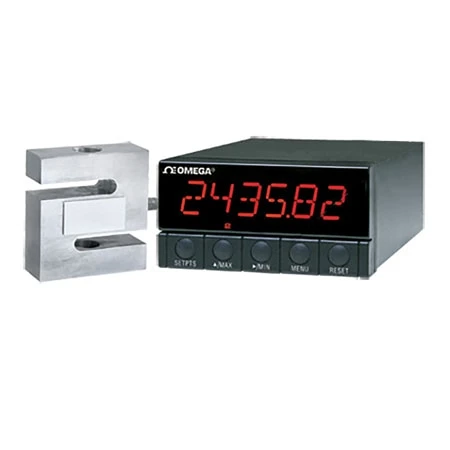

High Performance Strain Meter, High Resolution 6-Digit Display

Original price was: $335.00.Current price is: $97.99.

Compatible with Strain Gage Bridge Sensors or Ratiometric Voltage Sensors
Adjustable Filtering Up to 13 Hz
Displays Up to 999,999 Counts
NEMA-4 Front Panel

Alarm Output

Retransmission Output

Communications

Supply Voltage Type

Additional Features

Clear

SKU: DP41-S-AR4 Categories: Force & Strain Measurement, Strain Meters Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The OMEGA ® DP41-S indicators offer exceptional performance in a strain gage meter. The DP41-S has standard built-in excitation. The input range is selected via internal jumpers, and scaling to engineering units is performed using the front keypad. The DP41-S accepts strain gage bridge sensors and ratiometric voltage measurements. Programming the DP41-S is accomplished through the five front panel keypads. If the optional RS-232 or RS-485 communications are installed, the operator can remotely set all display parameters.

Examples of pricing for popular models is referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for all available models.

Alarm Output	4 Relays, None
Retransmission Output	Analog Current/Voltage, None
Communications	None, Serial
Supply Voltage Type	AC, DC
Additional Features	None, 230 Vac, 230 Vac, RS232, 230 Vac, RS485, RS232, RS485
Measurement Type	Strain
Input Type	Strain
Number of Inputs	1
Form Factor	1/8 DIN
Display Type	6 Digit Single Display
Max Sampling Rate	13 Hz
