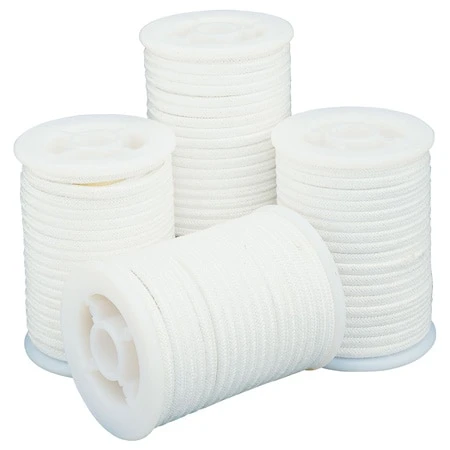

High Temp. Nextel Braided Ceramic And XS Silica Sleeving

Original price was: $276.08.Current price is: $99.99.

All XC4 sleeving (NEXTEL 440) is ‘Pink’ in color
Six Sizes
1/16′, 1/8′, 3/16′, 3/8′, 1/4′, 1/2′ Nominal Inside Diameter
Low Thermal Conductivity

Material

Max Temperature Rating

Sleeve Color

Wire Length

Clear

SKU: XS-38-25 Categories: Accessories, Protection, Wire Sleeves Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Nextel 312 is an Alumina-Borica-Silica fiber that is braided without the aid of organic, glass or metal inserts. This sleeving retains strength and flexibility at continuous exposure to 1200°C (2200°F). Short exposures to 1425°C (2600°F) can be tolerated. Most common metals (except molten copper and tin) do not attack the fibers.

Because Nextel 312 Ceramic Fibers contain no residual acids or chlorides, there are no chemicals present to corrode or etch the wires. Even in a test involving exposure to 96 percent relative humidity, no noticeable electrolytic corrosion was detected.

Not recommended for use in abrasive environments without the protection of Inconel® overbraiding or a thermowell.

Nextel material is also used to insulate fuel cell interconnect wire see part number XTW-XT-NN-24 for fuel cell application details.

This material is intended for industrial applications only. In addition, Omega does not recommend this material for food, cosmetic, medical, or pharmaceutical use.

Material	Silica, Nextel 312, Nextel 440
Max Temperature Rating	982°C (1800°F), 1200°C (2200°F), 1375°C (2500°F)
Sleeve Color	White, Pink
Wire Length	25 ft, 10 ft, 100 ft, 50 ft
