Hook-up Wire, TFE Insulation, 250V
Original price was: $109.21.$76.45Current price is: $76.45.
- PTFE Appliance Hook Up Wire
- Resistance to Most Chemicals
- Temperature Use Up to 200°C (392°F)
- -60 to 200°C (-76 to 392°F) Operating Temperature
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

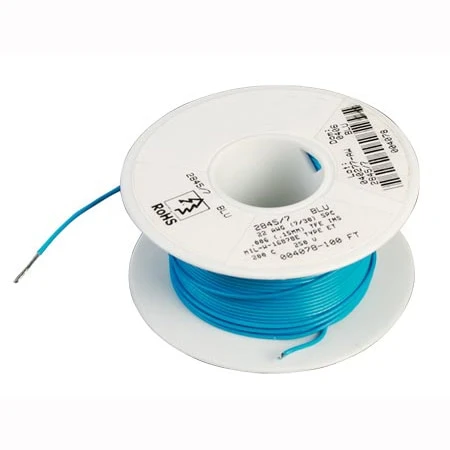

The HW2800 Series Hook-Up Wire is a 250 Volt rated single conductor appliance wire with MIL-W-16878E (Type ET) rating and is ROHS compliant. It is silver plated copper to minimize oxidation and is available as solid or stranded in multiple colors. This PTFE insulated wire can be used in military harnessing, medical electronics, power lead supply and appliance wire applications.
Omega has hundreds of different types of Hook-Up Wire in assorted gauges and colors, solid or stranded conductors, 100 and 1000 foot spools, many for immediate delivery.
Hook-Up Wire 150V – 300V Irradiated PVC Insulation – UL AWM 1430 & 3317
Hook-Up Wire 600V PTFE Insulation –UL AWM Style 1213
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wire Gauge | 24 AWG, 22 AWG |
|---|---|
| Stranded Wire or Solid | 7 x 32, 19 x 34, 7 x 30 |
| Cable Diameter | 0.91 mm (0.036 in), 1.12 mm (0.044 in), 1.07 mm (0.042 in) |
| Wire Color | Red, Black, blue, Brown, White, Green, Yellow |
| Volts | 250 V |
| Maximum Operating Temperature | 200°C (392°F) |
| Conductor Insulation | TFE Insulation |
| Length | 100 ft |
