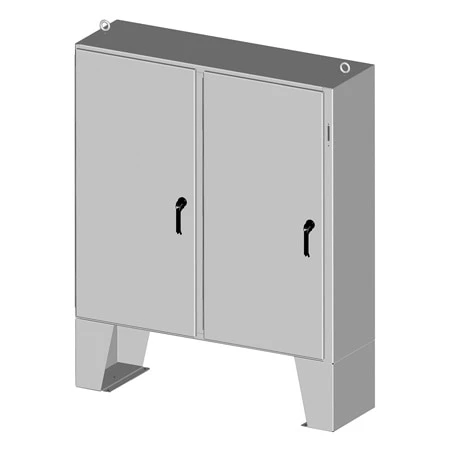

Indoor/Outdoor Enclosure With Provisions For Disconnect

Original price was: $376.00.Current price is: $95.99.

Carbon Steel and 304 or 316L Stainless Steel
Seams Continuously Welded and Ground Smooth
Flange Trough Collar Around All Sides of Door Opening
Oil-Resistant Gasket

Enclosure Material

Enclosure Color

Works With

Features

Clear

SKU: SCE-60XEL4912LP Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The SCE-XELLP Series two door indoor/ outdoor electrical enclosures are designed to house electrical and electronic controls, instruments and equipment in areas which may be regularly hosed down or are in very wet conditions. These electrical control panels provide protection from dust, dirt, oil and water. This outdoor electrical control panel is the solution for waterproof and weatherproof applications. The enclosures are extra deep for applications requiring more interior space. These enclosures are available in 0.125′ thick carbon steel (0.104′ thick door) with ANSI-61 gray powder coated inside and out. The sub-panels are powder coated white. The stainless steel models are available in 0.104′ thick 304 or 316L stainless steel, with #4 brushed finish.

SPECIFICATIONS
Industry Standards: IS3
    NE MA Type: 3R, 12 and type 13
    UL Listed Type: 3R and12
    CSA Type: 3R and 12
    IEC: 60529 IP55
Industry Standards: IS4
    NE MA Type: 3R, 4, 12 and type 13
    UL Listed Type: 3R, 4 and12
    CSA Type: 3R, 4 and 12
    IEC: 60529 IP66
Industry Standards: IS5
    NE MA Type: 3R, 4, 4X, 12 and type 13
    UL Listed Type: 3R, 4, 4X, and 12
    CSA Type: 3R, 4, 4X, and 12
    IEC: 60529 IP66

Size	60 in H x 49 in W x 12 in D, 60 in H x 49 in W x 18 in D, 60 in H x 49 in W x 24 in D, 60 in H x 61 in W x 12 in D, 60 in H x 61 in W x 18 in D, 60 in H x 61 in W x 24 in D, 72 in H x 73 in W x 12 in D, 72 in H x 73 in W x 18 in D, 72 in H x 73 in W x 24 in D, 72 in H x 61 in W x 12 in D, 72 in H x 61 in W x 18 in D, Not Applicable
Enclosure Material	Carbon Steel, 316 Stainless Steel, 304 Stainless Steel, Stainless Steel
Enclosure Color	Gray, Not Applicable
Works With	Electrical and Electronic Controls, Drip shield for 48" wide enclosure, Drip shield for 60" wide enclosure, drip shield for 72" wide enclosure
Features	Standard, Industry Standard 4, Industry Standard 3
