Sale!

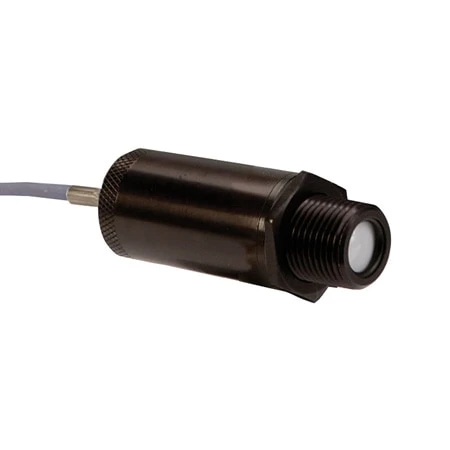

Infrared Temperature Sensor With USB Interface

Original price was: $222.86.Current price is: $95.99.

This product has been discontinued, please refer to the OS-MINI-Series.
Connects Directly to a USB Port on Your Computer
Free Software Converts Your PC into a Temperature Meter, Data Logger or Chart Recorder
-18 to 538°C (0 to 1000°F) Measurement Range

SKU: IR-USB Categories: Fixed Infrared Temperature Sensors, Non-Contact Temperature Measurement Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The IR-USB infrared temperature sensor provides a reliable and economical method for most noncontact temperature monitoring applications. Each unit is factory calibrated to provide excellent sensitivity, fast response, and stability. The unit features a IR sensor/signal conditioner installation with a direct USB connection. The free user software converts your PC into a temperature meter, chart recorder or data logger. A mounting kit is also available that allows for wall or duct mounting.

SPECIFICATIONS
PC Interface: USB
USB Cable: Integral to sensor, 2 m (6′) shielded Type A plug
Software (Included): Requires Windows® 2000, XP, Vista or Windows 7 operating system
Temperature Range: -18 to 538°C (0 to 1000°F)
Accuracy @ 22°C (72°F) Ambient Temperature and Emissivity of 0.95 or Greater: ±2% rdg or 2.2°C (4°F), whichever is greater
Optical Field of View: 6:1 (distance/spot size)
Repeatability: ±1% rdg
Spectral Response: 5 to 14 microns
Response Time: 100 ms (0 to 63% of final value)
Emissivity Range: 0.1 to 1.00, adjustable

Operating Temperature
Sensor Head: 0 to 70°C (32 to 158°F)
Sensor Head (-HT Model): 0 to 85°C (32 to 185°F)
Sensor Head with OS100-WC(Water Cooling Jacket): 0 to 200°C (32 to 392°F)
Operating Relative Humidity: Less than 95% RH, non-condensing
Water Flow Rate (OS100-WC): 0.25 GPM, room temperature
Thermal Shock: ˜30 minutes for 25°C (77°F) abrupt ambient temperature change
Warm-Up Period: 3 minutes
Air Flow Rate (OS100-AP): 1 CFM (0.5 L/s) (1 x 2.5″)

Laser Sight Accessory (OS100-LS)
Wavelength (Color): 630 to 670 nm (red)

Process Temprature Range	-18°C (0°F) to 538°C (1000°F)
Field of View	61
Accuracy @ Ambient	±2% rdg or 2.2°C (4° F)
Operating Temprature range	0°C (32°F) to 70°C (158°F)
Laser Output	No
Built in Display	No
Emissivity	0.1-1
Cable Length	6 ft
Output	USB
Supply Voltage	5 Vdc
Spectral Response	5 to 14 microns
Response Time	100 ms
Communication Protocol	USB
Intrisically Safe	No
Features	None
