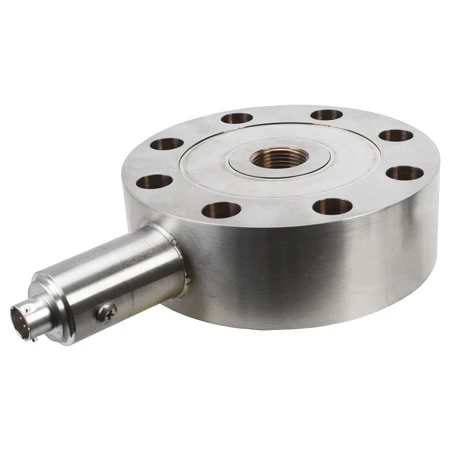

Intrinsically Safe, Ultra Low Profile Load Cells

Original price was: $344.00.Current price is: $96.99.

FM Intrinsically Safe Rating Standard
4 to 20 mA Output
5-Point NIST Traceable Calibration Included
0.25% Interchangeability

Weight Capacity

Electrical Output (nominal)

Through hole (ID)/ Threaded hole dimension

Height

Connection Type

Cable Length

Feature

Clear

SKU: LCHD-10K1BC2ISNP Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The LCHD-IS Series intrinsically safe load cells are FM rated Intrinsically safe for use in Hazardous locations. They are available with 5 different electrical terminations: Three connector options and 2 cable options, one of which is a submersible waterproof cable. Standard models have an amplified 4 to 20 mA output for unidirectional applications and a 4-12-20 mA output for bidirectional applications.

Recognized and respected across the globe, FM Approvals certification assures customers a product or service that has been objectively tested and conforms to the highest national and international standards. Please refer to FM Approvals for downloadable copies of FM Approvals Certificate of Compliance and Installation Control Drawings.

The LCHD-IS is also available in metric configurations, with ranges from 5000 kgf 0 to 10,000 kgf and metric threads. Please see LCMHD-IS LCMHD-IS for complete details, or contact our Pressure department for more information.

Weight Capacity	10,000 lbf, 15,000 lbf, 200,000 lbf, 20,000 lbf, 30,000 lbf, 50,000 lbf, 7,500 lbf
Electrical Output (nominal)	4-12-20 mA, 4 to 20 mA
OD	5.5", 11", 6"
Through hole (ID)/ Threaded hole dimension	1-14 UNS, 2 1⁄2–12 UN, 1 1⁄2-12 UNF
Height	1.8", 3"
Connection Type	MIL-26482-I 10-6P, Cable, M12
Cable Length	Not applicable, 15 ft, 10 ft
Feature	No Trim Pots, Not Applicable, Submersible Cable
Measurement Units	lbf
Force direction	Tension/Compression
Linearity	±0.1%
