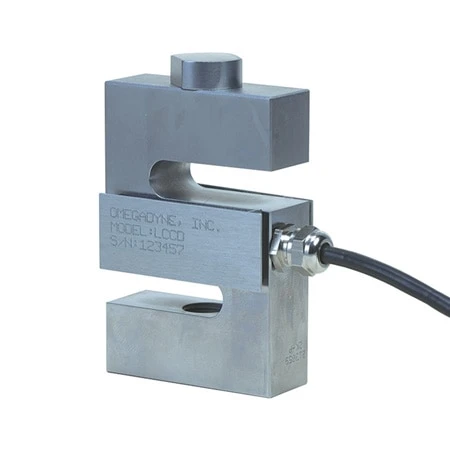

IP67 Environmentally Protected S-Beam Load Cells

Original price was: $347.00.Current price is: $97.99.

Environmentally Protected to IP67
All Stainless Steel for Industrial Environments
5 Point Calibration with 59 kOhm Shunt Cal Data
Tension Calibration Standard

Weight Capacity

Height

Width

Length

Clear

SKU: LCCD-100 Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The LCCD is also available in metric configurations, with 0-10 to 0-5,000 kgf ranges and metric thread. Please see the LCMCD for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc maximum)
Output: 3.0 mV/V ±0.25%
Linearity: 0.03% FS
Hysteresis: 0.02% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: -18 to 66°C (0 to 150°F)
Compensated Temperature: -18 to 66°C (0 to 150°F)
Thermal Effects:
Zero: 0.0027% FS/°C
Span: 0.0015% rdg/°C
Maximum Load: Safe, 150%; ultimate, 300%
Bridge Resistance: 350 ? nominal
Construction: 17-4 PH stainless steel
Cable: Cable: 6 m (20′) 4-conductor shielded 24-gage wire (20 AWG for 15K & 20K lb. capacities)

Weight Capacity	100 lbf, 10,000 lbf, 150 lbf, 15,000 lbf, 1,000 lbf, 200 lbf, 20,000 lbf, 25 lbf, 250 lbf, 2,000 lbf, 3,000 lbf, 50 lbf, 500 lbf, 5,000 lbf, 750 lbf
Height	2.5", 4.25", 5.5", 3", 7"
Width	0.75", 1.3", 1.6", 1", 2.3", 0.85"
Length	2", 3", 4", 5"
Measurement Units	lbf
Force direction	Tension/Compression
Linearity	±0.03%
Electrical Output (nominal)	3 mV/V
Connection Type	Cable
Cable Length	20 ft
