K Type Thermocouple Duplex Wire

Original price was: $166.31.Current price is: $97.99.

High Quality Type “K” Thermocouple Grade Wire
In Stock – Available for Immediate Shipment
Choice of Insulation, Wire Gage, & Length

Temperature Min

Cable Type

Color Code Standard

Special Limit of error

Overbraiding Type

Number of Pairs

Overall Insulation

Additional Feature

Temperature Max

Cable Length

Conductor type

Conductor Insulation

Wire Gauge

Thermocouple Calibration Type

Temperature Range

Clear

SKU: GG-K-20S-TCB-50 Categories: Temperature Wire and Cable, Thermocouple Wires Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

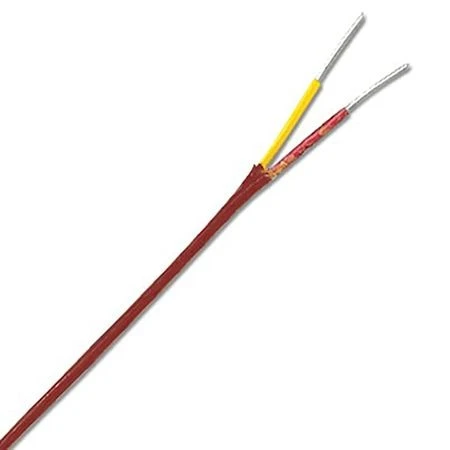

ANSI Color Code K Type thermocouple wire: Positive Wire, Yellow ; Negative Wire, Red; Overall, Brown

Use the table below as a guide for types available. The “To Order” box contains some examples of popular models. Use the “Part Number Builder” (Below Table) to get pricing for all available models.

Insulation	AWG No.	Model Number	Type Wire	Insulation		Max. Temp		Nominal Size	Wt.† lb/1000′
Insulation	AWG No.	Model Number	Type Wire	Conductor	Overall	°F	°C	Nominal Size	Wt.† lb/1000′
Ceramic**	14	XC-K-14	Solid	Nextel Ceramic	Nextel Ceramic	2000	1090	.140 x .200	38
	20	XC-K-20	Solid	Nextel Ceramic	Nextel Ceramic	1800	980	.135 x .190	16
	20	XT-K-20	Solid	Nextel Ceramic	Nextel Ceramic	1800	980	.105 x .155	15
	20	XL-K-20	Solid	Nextel Ceramic	Nextel Ceramic	1800	980	.095 x .135	14
	24	XC-K-24	Solid	Nextel Ceramic	Nextel Ceramic	1600	870	.115 x .175	12
	24	XT-K-24	Solid	Nextel Ceramic	Nextel Ceramic	1600	870	.088 x .132	11
	24	XL-K-24	Solid	Nextel Ceramic	Nextel Ceramic	1600	870	.078 x .116	10
Vitreous Silica*	20	XR-K-20	Solid	Refrasil	Refrasil	1600	870	.115 x .180	14
Silica*	14	XS-K-14	Solid	Silica	Silica	2000	1090	.140 x .200	35
	20	XS-K-20	Solid	Silica	Silica	1800	980	.105 x .155	12
	24	XS-K-24	Solid	Silica	Silica	1600	870	.088 x .132	10
High Temp. Glass**	20	HH-K-20	Solid	High Temp. Glass	High Temp. Glass	1300	704	.060 x .105	9
High Temp. Glass**	24	HH-K-24	Solid	High Temp. Glass	High Temp. Glass	1300	704	.055 x .090	5
Glass	20	GG-K-20	Solid	Glass Braid	Glass Braid	900	482	.060 x .095	9
	20	GG-K-20S	7 x 28	Glass Braid	Glass Braid	900	482	.060 x .100	9
	24	GG-K-24	Solid	Glass Braid	Glass Braid	900	482	.050 x .080	5
	24	GG-K-24S	7 x 32	Glass Braid	Glass Braid	900	482	.050 x .085	5
	26	GG-K-26	Solid	Glass Wrap	Glass Braid	900	482	.045 x .075	4
	28	GG-K-28	Solid	Glass Wrap	Glass Braid	900	482	.040 x .055	3
	30	GG-K-30	Solid	Glass Wrap	Glass Braid	900	482	.037 x .050	3
	36	GG-K-36	Solid	Glass Wrap	Glass Braid	900	482	.033 x .045	2
Glass with Stainless Steel Overbraid	20	GG-K-20-SB	Solid	Glass	Stainless Steel Braid over Glass	900	482	.090 x .120	14
	20S	GG-K-20S-SB	7 x 28	Glass	Stainless Steel Braid over Glass	900	482	.090 x .127	15
	24	GG-K-24-SB	Solid	Glass	Stainless Steel Braid over Glass	900	482	.085 x .117	11
	24S	GG-K-24S-SB	7 x 32	Glass	Stainless Steel Braid over Glass	900	482	.080 x .110	11
Kapton Fused Polymide Tape	20	KK-K-20	Solid	Fused Polymide Tape	Fused Polymide Tape	500	260	.060 x .100	11
	20S	KK-K-20S	7 x 28	Fused Polymide Tape	Fused Polymide Tape	500	260	.060 x .105	11
	24	KK-K-24	Solid	Fused Polymide Tape	Fused Polymide Tape	500	260	.050 x .075	6
	24S	KK-K-24S	7 x 32	Fused Polymide Tape	Fused Polymide Tape	500	260	.050 x .085	6
	30	KK-K-30	Solid	Fused Polymide Tape	Fused Polymide Tape	500	260	.040 x .055	5
PFA Glass	30	TG-K-30	Solid	PFA	Glass Braid	500	260	.034 x .047	2
	36	TG-K-36	Solid	PFA	Glass Braid	500	260	.028 x .038	2
	40	TG-K-40	Solid	PFA	Glass Braid	500	260	.026 x .035	2
Neoflon PFA (HighPerformance)	20	TT-K-20	Solid	PFA	PFA	500	260	.068 x .116	11
	20	TT-K-20S	7 x 28	PFA	PFA	500	260	.073 x .126	11
	22	TT-K-22S	7 x 30	PFA	PFA	500	260	.065 x .133	9
	24	TT-K-24	Solid	PFA	PFA	500	260	.056 x .093	6
	24	TT-K-24S	7 x 32	PFA	PFA	500	260	.063 x .102	6
	30	TT-K-30††	Solid	PFA	PFA	500	260	.024 x .040	2
	36	TT-K-36††	Solid	PFA	PFA	500	260	.019 x .030	2
	40	TT-K-40††	Solid	PFA	PFA	500	260	.017 x .026	2
PFA Polymer w/Twisted and Shielded Conductors	20	TT-K-20-TWSH	Solid	PFA Polymer	PFA Polymer and Shielding	500	260	.15	20
	20S	TT-K-20S-TWSH	7 x 28	PFA Polymer	PFA Polymer and Shielding	500	260	.15	20
	24	TT-K-24-TWSH	Solid	PFA Polymer	PFA Polymer and Shielding	500	260	.11	9
	24S	TT-K-24S-TWSH	7 x 32	PFA Polymer	PFA Polymer and Shielding	500	260	.12	9
Neoflon FEP	20	FF-K-20	Solid	FEP	FEP	392	200	.068 x .116	11
Neoflon FEP	24	FF-K-24	Solid	FEP	FEP	392	200	.056 x .092	6
FEP Polymer w/Twisted and Shielded Conductors	20	FF-K-20-TWSH	Solid	FEP Polymer	FEP Polymer and Shielding	392	200	.15	20
	20S	FF-K-20S-TWSH	7 x 28	FEP Polymer	FEP Polymer and Shielding	392	200	.15	20
	24	FF-K-24-TWSH	Solid	FEP Polymer	FEP Polymer and Shielding	392	200	.11	9
	24S	FF-K-24S-TWSH	7 x 32	FEP Polymer	FEP Polymer and Shielding	392	200	.12	9
TFE Tape Polymer	20	TFE-K-20	Solid	TFE Tape Polymer	Fused TFE Tape and Polymer	500	260	.060 x .100	11
	20S	TFE-K-20S	7 x 28	TFE Tape Polymer	Fused TFE Tape and Polymer	500	260	.060 x .105	11
	24	TFE-K-24	Solid	TFE Tape Polymer	Fused TFE Tape and Polymer	500	260	.050 x .075	6
	24S	TFE-K-24S	7 x 32	TFE Tape Polymer	Fused TFE Tape and Polymer	500	260	.050 x .085	6
Polyvinyl	24	PR-K-24	Solid	Polyvinyl	(Rip Cord)	221	105	.050 x .086	5
Polyvinyl	24	PP-K-24S	7 x 32	Polyvinyl	(Polyvinyl)	221	105	.082 x .134	5

†Weight of spool and wire rounded up to the next highest lb. (does not include packing material).
††Overall color clear
*Has color tracers on jacket and conductors
**Has color tracers on jacket and positive leg only
Some wires available with Special Limits of Error; consult Sales for pricing and availability.

Temperature Min	-200, 0, -40, -24
Cable Type	Thermocouple Wire, Thermocouple Wire Twisted Shielded
Category	Thermocouple
Color Code Standard	ANSI (Standard), IEC, Stranded
Special Limit of error	No, Yes
Overbraiding Type	Tinned Copper Overbraid, none, Stainless Steel Overbraid, Inconel Overbraid, Not applicable, Nextel 312 Standard Braid
Number of Pairs	None, 1.0
Overall Insulation	Glass Braid, FEP, High Temp Glassbraid, Polyimide, Polyvinyl (PVC), None, TFE, PFA, Nextel Ceramic, Silica
Additional Feature	None, Rip Cord Construction, SMP M+F Connectors, Not Applicable, IEC Standard
Temperature Max	482, 200, 704, 260, 105, 1090, 980, 870
Cable Length	50 ft, 100 ft, 1000 ft, 150 m, 200 ft, 25 ft, 300 m, 30 m, 500 ft, 7.5 m, 100 m, 15 m, 60 m, 5 ft, 10 m
Conductor type	Stranded, Solid
Conductor Insulation	Glass Braid, FEP, High Temp Glassbraid, Polyimide, Polyvinyl (PVC), TFE, PFA, Neoflon PFA, Nextel Ceramic, Silica
Wire Gauge	20 AWG, 24 AWG, 22 AWG, 26 AWG, 28 AWG, 30 AWG, 36 AWG, 40 AWG, 14 AWG
Thermocouple Calibration Type	K, T
Temperature Range	-200 to 482°C (-328 to 900°F), 0 to 200°C (32 to 392°F), 0 to 482°C (32 to 900°F), -40 to 482°C (-40 to 900°F), -200 to 704°C (-328 to 1300°F), -40 to 704°C (-40 to 1300°F), 0 to 260°C (32 to 500°F), -24 to 105°C (-11 to 221°F), 0 to 105°C (32 to 220°F), -200 to 260°C (-328 to 500°F), 0 to 260°C (32 to 450°F), -40 to 260°C (-40 to 500°F), 0 to 1090°C (32 to 2000°F), 0 to 980°C (32 to 1800°F), 0 to 870°C (32 to 1600°F)
Temperature Unit	°C
