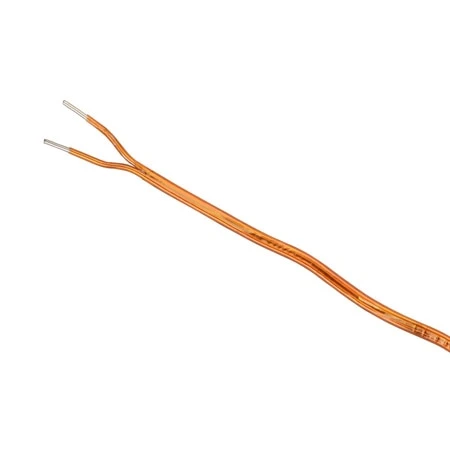

Kapton Insulated Thermocouple Duplex Wire
Original price was: $325.00.$96.99Current price is: $96.99.
- Thermocouple Types J or K
- 20, 24, or 30 Gage Solid Wire
- 20 or 24 Gage Stranded Wire
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Fused Kapton® tape applied to conductors and jackets. Excellent moisture and abrasion resistance, high dielectric strength (7 kV/mil) retains much physical integrity after gamma radiation. FEP is used as adhesive binding agent (melts at approx. 500°F). In many stationary applications the wire can potentially withstand 600°F for prolonged time periods due to bi-directional overlapping insulation design.
Examples of pricing for popular models is referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for other available models.
For complete product specifications see the “Specs” link above.
| Thermocouple Calibration Type | K, J, T |
|---|---|
| Temperature Max | 260 |
| Number of Pairs | None |
| Overall Insulation | Polyimide |
| Cable Type | Thermocouple Wire |
| Additional Feature | None |
| Conductor Insulation | Polyimide |
| Temperature Range | 0 to 260°C (32 to 500°F) |
| Temperature Min | 0 |
| Wire Gauge | 20 AWG, 24 AWG, 30 AWG |
| Temperature Unit | °C |
| Category | Thermocouple |
| Special Limit of error | Yes, No |
| Overbraiding Type | none, Tinned Copper Overbraid |
| Cable Length | 200 ft, 100 ft, 1000 ft, 150 m, 25 ft, 300 m, 30 m, 50 ft, 500 ft, 7.5 m, 100 m, 15 m, 60 m |
| Conductor type | Stranded, Solid |
| Color Code Standard | ANSI (Standard) |
