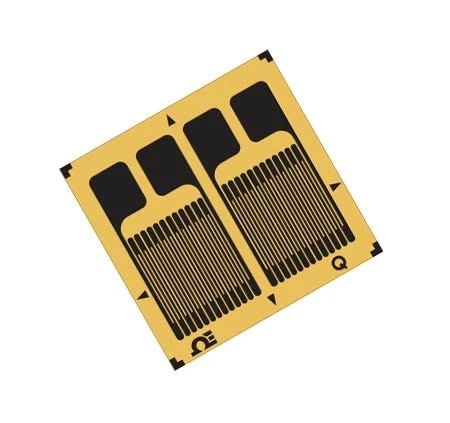

Karma, Dual Parallel Linear Strain Gauges With A Common Lead

Original price was: $75.25.Current price is: $52.68.

K-Series, Karma Gages for Transducers
Stock Delivery, Copper Plated Solder Pads
Temperature Characteristics Matched to Steel or Aluminum
Dual Parallel Grid for Bending Strain Applications

Grid Length Range

Grid Length

Grid Width

Resistance

STC number

Clear

SKU: SGK-D3A-K350U-PC11-E Categories: Dual Parallel Strain Gauges, Force & Strain Measurement, Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGADYNE® offers Karma K-Series dual linear strain gage patterns. These strain gages can be used for bending beam transducer designs where you have access to both sides of the beam. Each carrier has 2 separate parallel linear strain gages. Precision Karma material offers excellent temperature and fatigue characterisitcs. K-Series gages have plated solder pads which make soldering quick and easy. No special solders or fluxes are required.

Grid Length Range	3 to 6 mm, > 6 mm
Grid Length	3.2 mm, 6.3 mm
Grid Width	1.6 mm, 2.5 mm
Resistance	350 Ω, 1,000 Ω
STC number	ST, AL
Grid Style	Karma Dual Linear
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	200
Connection Type	Solder pads
Maximum Strain	15,000 µm
