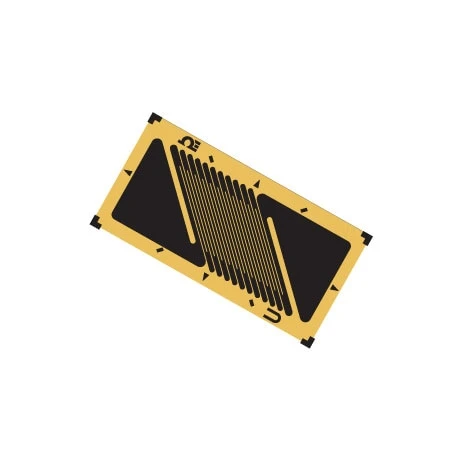

Karma Shear And Torque Pattern Gauges
Original price was: $71.37.$49.96Current price is: $49.96.
- Sold in Packages of 5 gages
- K-Series, Premium Karma Strain Gages
- Available as Single ¼ Bridge, Single Matched Reversed Patterns, ½ Bridge with Separate Connection Pads, or ½ Bridge with Common Connection Tab
- Custom Gages Available – Fast Delivery
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
OMEGADYNE® offers K-Series strain gages for shear and torsional strain applications. These strain gages can be used in transducer design for shear beam load cells. They can also be used for reaction torque on a shaft. Single strain gages are available, SGK-SS3A-K350U-**** and matched, but with opposite grid angle is the SGK-SS3B-K350U-****. The SGK-SD3A-K350U-**** and the SGK-SD3B-K350U-**** have 2 shear strain gages, with opposite grid angles, on one carrier, with separate leads/tabs(electrically independent). The SGK-SDH3B-K350U-**** has 2 shear strain gages, with opposite grid angles with a common lead/tab.
| STC number | ST, AL |
|---|---|
| Features | Two shear Gauges with all connections at each end, Not Applicable, Shear gage with opposite patterns |
| Grid Style | Karma Shear and Torque |
| Grid Length Range | 3 to 6 mm |
| Grid Length | 3.2 mm |
| Grid Width | 3.38 mm |
| Temperature Range Units | °C |
| Temperature Range Min | -75 |
| Temperature Range Max | 200 |
| Connection Type | Solder pads |
| Resistance | 350 Ω |
| Maximum Strain | 15,000 µm |
