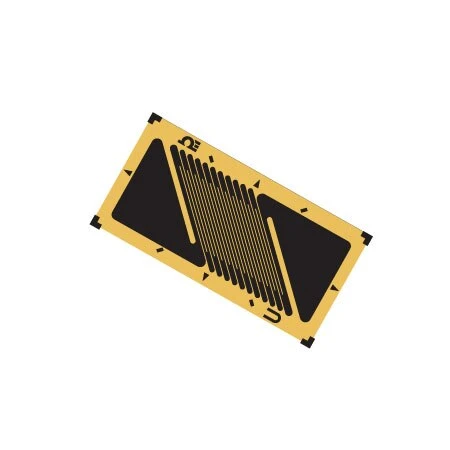

Karma, Shear Half Bridge Strain Gauges With A Common Lead

Original price was: $110.30.Current price is: $77.21.

Sold in Packages of 5 gages
K-Series, Premium Karma Strain Gages
Available as Single ¼ Bridge, Single Matched Reversed Patterns, ½ Bridge with Separate Connection Pads, or ½ Bridge with Common Connection Tab
Custom Gages Available – Fast Delivery

SKU: SGK-SDH3B-K350U-PC11-E Categories: Force & Strain Measurement, Strain Gauges, Torsion and Shear Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGADYNE® offers K-Series strain gages for shear and torsional strain applications. These strain gages can be used in transducer design for shear beam load cells. They can also be used for reaction torque on a shaft. Single strain gages are available, SGK-SS3A-K350U-**** and matched, but with opposite grid angle is the SGK-SS3B-K350U-****. The SGK-SD3A-K350U-**** and the SGK-SD3B-K350U-**** have 2 shear strain gages, with opposite grid angles, on one carrier, with separate leads/tabs(electrically independent). The SGK-SDH3B-K350U-**** has 2 shear strain gages, with opposite grid angles with a common lead/tab.

Grid Style	Shear half bridge with common lead/pad
Grid length	3.2 mm (0.126 in)
Grid Width	3.38 mm (0.133 in)
Resistance	1000 Ω
STC number	ST
Maximum Voltage	11 Vrms
Connection Type	Solder pads
