Karma, T Rosette Strain Gauges For Stability & High Temperatures

Original price was: $88.13.Current price is: $61.69.

K-Series, Transducers Quality
Good Linearity Over Wide Temperature Range -75 to 200°C (-100 to 392°F)
Good Fatigue Life
Custom Gages Available – Fast Delivery

Grid Length

Grid Width

STC number

Features

Clear

SKU: SGK-B3A-K350U-PC11-E Categories: Force & Strain Measurement, Strain Gauges, T-Rosette Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGADYNE® offers K-Series Tee Rosettes for Axial strain transducer designs. Precision Karma material offers excellent temperature and fatigue characterisitcs. K-Series gages have plated solder pads which make soldering quick and easy. No special solders or fluxes are required.

Three different Tee Rosette styles available:

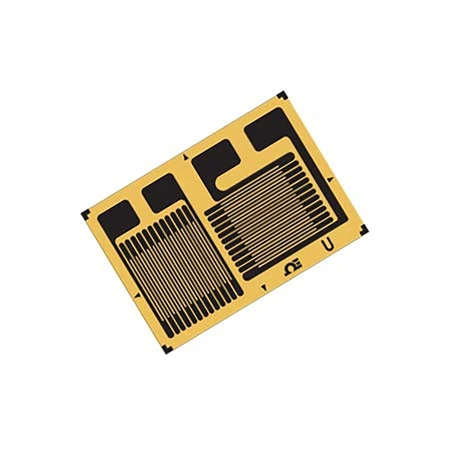

SGK-B3A-K350U -***** has 2 separate strain gages with perpendicular grids on a single carrier.
SGK-BH3A-K350U-***** is a half-bridge design, with 2 strain gages, perpendicular grids with a common lead/pad on a single carrier.
SGK-B5A-K350W-***** is a half-bridge Tee Rosette design, often used for column load cell design where high accuracy is a requirement. The geometry for this strain gage is shown with the tabs along the top, and the center strain gage is vertical, and used for the principal stress direction in the column. The Perpendicular grid is split, half on each side. This may also be known as transverse grid. The transverse grid tends to correct for bending strain, or off-axis loading in the column.

Grid Length	3.2 mm, 5 mm
Grid Width	4 mm, 2.3 mm
STC number	ST, AL
Features	Separate Soder Pads, Not Applicable, Common Soder Pads
Grid Style	Karma T Rosettes
Grid Length Range	3 to 6 mm
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	200
Connection Type	Solder pads
Resistance	350 Ω
Maximum Strain	15,000 µm
