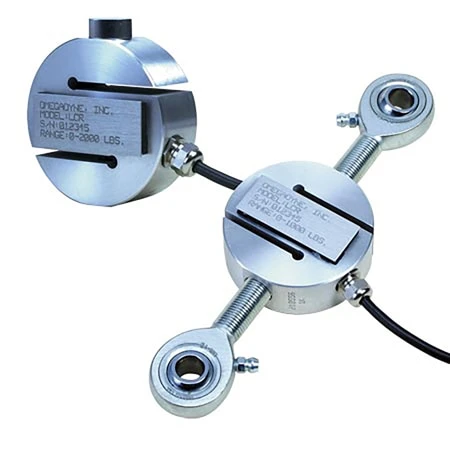

Lightweight, Aluminum S-Beam Load Cells For Industrial Use

Original price was: $388.00.Current price is: $97.99.

High Accuracy Industrial Applications
5-Point NIST Traceable Calibration (in Tension) Included
0.25% Interchangeability
Lightweight Aluminum Construction Ranges to 1000 lb

Weight Capacity

Height

Width

Clear

SKU: LCR-3K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

SPECIFICATIONS
Excitation: 10 Vdc, 15 V max
Output: 3 mV/V ±0.25%
Calibration: 5 point in tension (0%, 50%, 100%, 50%, 0%)
Linearity: ±0.03%
Hysteresis: ±0.02%
Repeatability: ±0.01%
Creep (20 min): ±0.03%
Operating Temperature: -18 to 71°C (0 to 150°F)
Compensated Temperature: 17 to 71°C (60 to 160°F)
Thermal Effects:
    Zero: ±0.0027% FS/°C
    Span: ±0.0015% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 ? nominal
Protection Level: IP55
Material:
    ?1000 lb Ranges: Aluminum
    >1000 lb Ranges: 17-4 PH SS
Electrical Connection: 6 m (20′)
Wiring:
    Red: (+) Excitation
    Black: (-) Excitation
    Green: (+) Output
    White: (-) Output

Weight Capacity	3,000 lbf, 100 lbf, 10,000 lbf, 150 lbf, 1,000 lbf, 200 lbf, 25 lbf, 250 lbf, 2,000 lbf, 50 lbf, 500 lbf, 5,000 lbf, 750 lbf
Height	2.4", 0.194", 3.4", 2.24"
Width	1.2", 0.9", 1.8", 1.5"
Measurement Units	lbf
Force direction	Tension
Linearity	±0.03%
Electrical Output (nominal)	3 mV/V
Connection Type	Cable
Cable Length	20 ft
