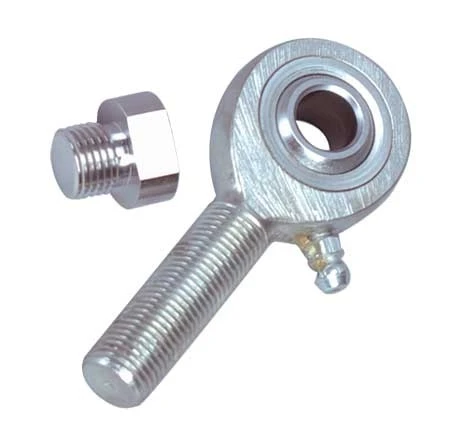

Load Buttons And Rod Ends For Metric Load Cells

Original price was: $135.97.Current price is: $95.99.

Insures Proper Loading and Helps Prevent Damage
Load Buttons for Compression Applications
Rod Ends for Tension Applications

Through hole (ID)/ Threaded hole dimension

Feature

Clear

SKU: LBC-100 Categories: Force & Strain Measurement, Force and Strain Measurement Accessories, Load Cell Hardware Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Description

LOAD CELL OPTIONS (Limited Models Only)
Temperature Compensation:
&nbsp&nbsp&nbsp&nbsp”-TC1″ Extended compensated range
&nbsp&nbsp&nbsp&nbsp-46 to 93°C (-50 to 200°F) not exceeding operating range ….. $50
&nbsp&nbsp&nbsp&nbsp”-TC2″-46 to 163°C (-50 to 325°F) ……………………………… 225

Additional cable Length:
&nbsp&nbsp&nbsp&nbsp4 conductor PVC …………………………………………. $2.00/ft
&nbsp&nbsp&nbsp&nbsp4 conductor PTFE …………………………………………. 4.50/ft
&nbsp&nbsp&nbsp&nbsp6 conductor PVC ………………………………………….. 2.75/ft
&nbsp&nbsp&nbsp&nbsp6 conductor PTFE …………………………………………. 6.50/ft

Mating Connectors:
&nbsp&nbsp&nbsp&nbspPT06F10-6S ……………………………………………….. $26.50
&nbsp&nbsp&nbsp&nbspPT06A10-6S ………………………………………………….18.00

Calibration/Recalibration: (standard on most models)
&nbsp&nbsp&nbsp&nbsp”NC5″ 5 point calibration ………………………………… $160
&nbsp&nbsp&nbsp&nbsp0%, 50%, 100%, 50%, 0% FS
&nbsp&nbsp&nbsp&nbspExtra calibration points …………………………………… $25/point

Built-In Amplifiers:
&nbsp&nbsp&nbsp&nbsp0 to 5 Vdc ………………………………………………….. $175
&nbsp&nbsp&nbsp&nbsp4 to 20 mA ………………………………………………….. 195

In-Line Amplifiers: Consult Engineering

METRIC LOAD BUTTONS AND ROD ENDS
For full product specifications and dimensions click on the “SPECS” link above.
