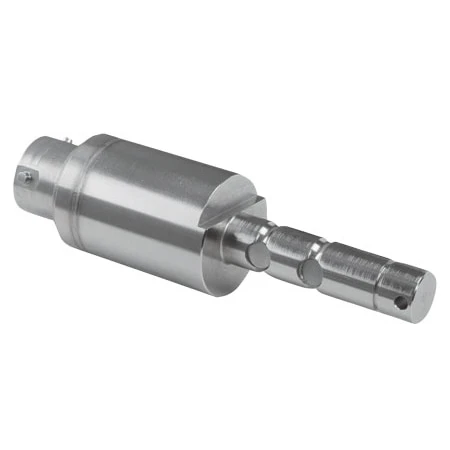

Load Pin Load Cell With Temperature Compensation

Original price was: $398.00.Current price is: $97.99.

Dual Shear Beam Technology
High 0.50% Accuracy Class
All Stainless Steel Construction
Standard PTIH-10-6P Connector

Weight Capacity

Length

Connection Type

Clear

SKU: LCP500-2K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

LCP Load Pin Series are compact size load pins designed for tension and compression measurements. They can be applied on clevis pin shackles, loading cranes, lifting fittings, sprockets and pulley axles by replacing existing shear pins, clevis bolts, clevis pins, shear axles and many other types of pinned joints to control or monitor reaction load on the pins.

Load Pin Applications
Applications include measuring of cable tension, structural testing, aerospace and construction, force calibration, lifting systems, mooring systems, hydraulic presses and crane load systems. LCP Series are temperature compensated.

In this post how a load cell works is explained.

Weight Capacity	2,000 lbf, 10,000 lbf, 12,500 lbf, 18,000 lbf, 20,000 lbf, 30,000 lbf, 1,500 lbf, 600 lbf, 750 lbf, 3,000 lbf, 5,000 lbf, 6,000 lbf
OD	0.46", 0.94", 1.2", 1.41", 0.34", 0.70"
Length	3.5", 4.26", 5.25", 6.20", 2.75", 3.99"
Connection Type	MIL-26482-I 10-6P, LCP-SERIES
Measurement Units	lbf
Force direction	Tension/Compression
Linearity	±0.5%
Electrical Output (nominal)	1 mV/V
