Load Washers To Measure Bolt Compression
Original price was: $347.00.$95.99Current price is: $95.99.
- All Stainless Steel Construction
- Mounting Washers Included
- NIST Calibration Certificate
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

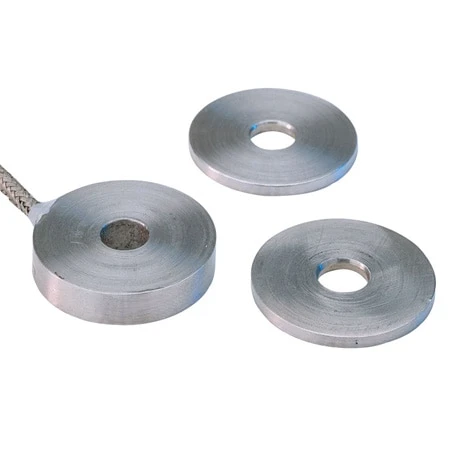

OMEGA’s LC900 Series bolt force sensor is a compression load cell designed to measure the clamping force of a bolt. With excellent long term stability and all stainless steel construction, the LC900 Series delivers high reliability in severe industrial environments. This unit is designed to operate by mounting on a flat surface between two mounting washers (included).
The LC901 is also available in metric configurations, with ranges from 0-10,000 to 0-500,000 N. Please see the LCM901 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 5 Vdc (10V max)
Output: 2 mV/V nominal
Accuracy: ±3.5% FSO (linearity, hysteresis and repeatability combined)
Zero Balance: ±4% FSO
Operating Temp Range: -54 to 93°C (-65 to 200°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.018% FSO/°C
   Span: ±0.036% rdg/°C
Safe Overload: 130% of capacity
Ultimate Overload: 150% of capacity
Bridge Resistance: 120 ? nominal
Construction: Stainless steel
Electrical Connection: 1.2 m (4′) insulated shielded cable
| Weight Capacity | 10,000 lbf, 30,000 lbf, 2,000 lbf, 5,000 lbf, 100,000 lbf, 65,000 lbf, 50,000 lbf, 50,000 N, 130,000 N, 200,000 N, 300,000 N, 500,000 N, 10,000 N, 20,000 N |
|---|---|
| Measurement Units | lbf, N |
| OD | 0.75", 1", 2.625", 1.5", 1.125" |
| Through hole (ID)/ Threaded hole dimension | 0.396", 0.517", 0.266'', 1.53", 0.770", 0.644" |
| Height | 0.062", 0.78", 0.125", 0.093", 0.078" |
| Connection Type | Cable, MIL-26482-I 10-6P |
| Cable Length | 4 ft, Not applicable |
| Force direction | Compression |
| Linearity | ±3.50% |
| Electrical Output (nominal) | 2 mV/V |
